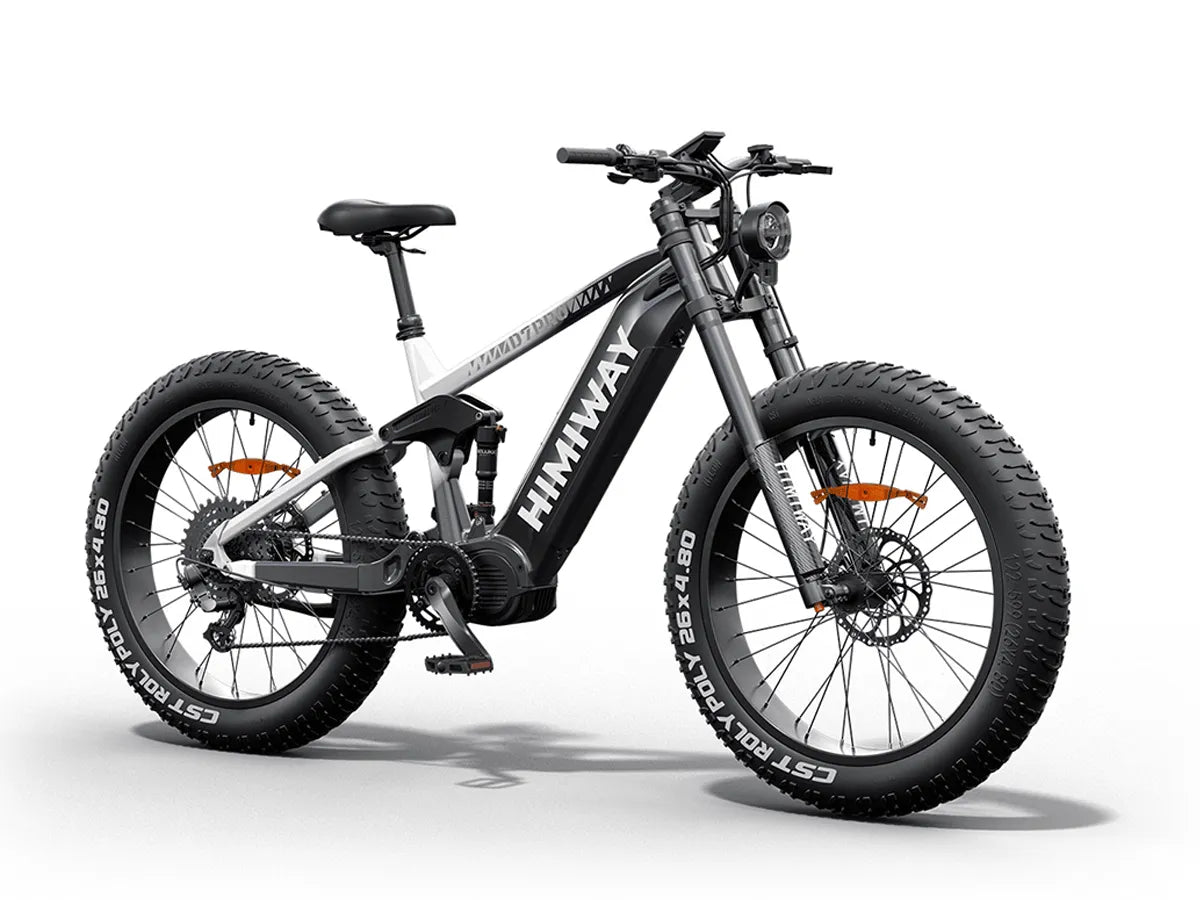

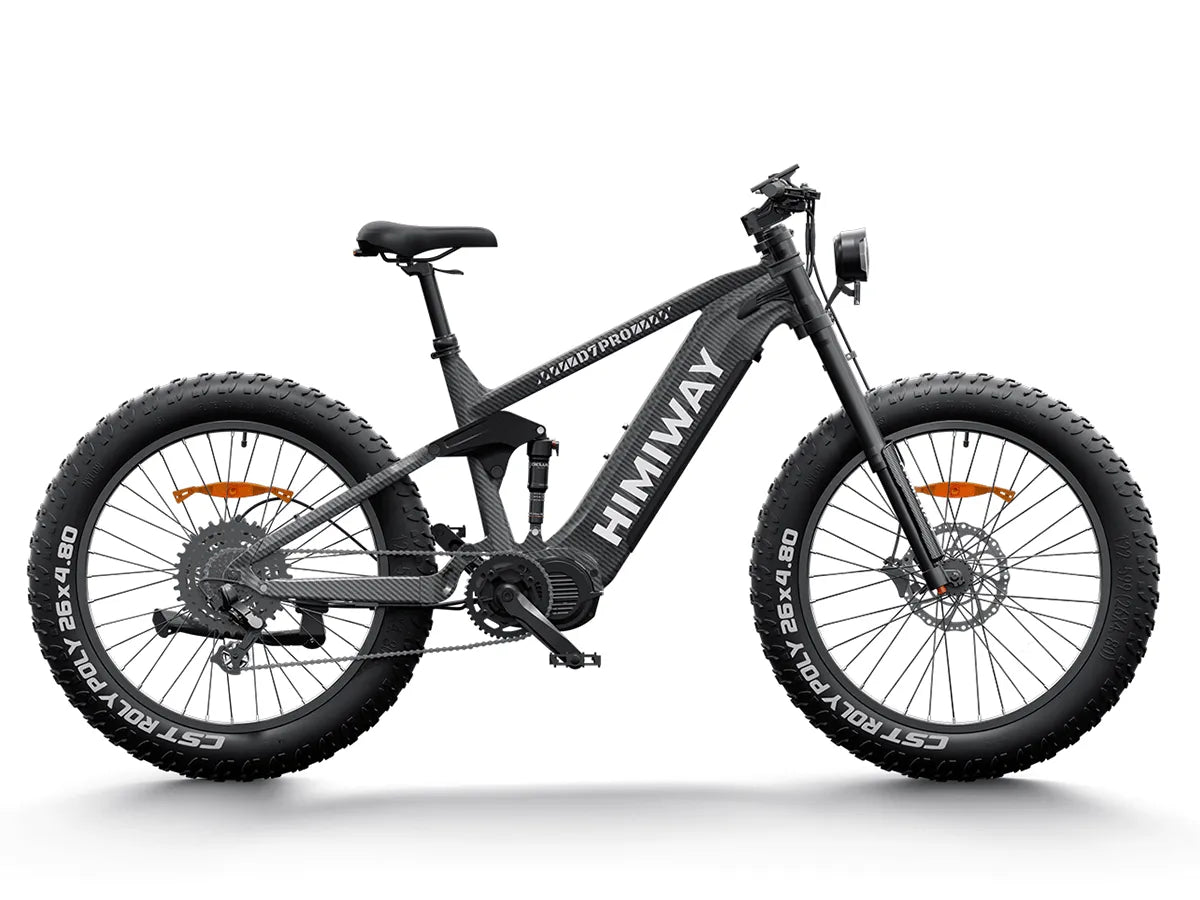

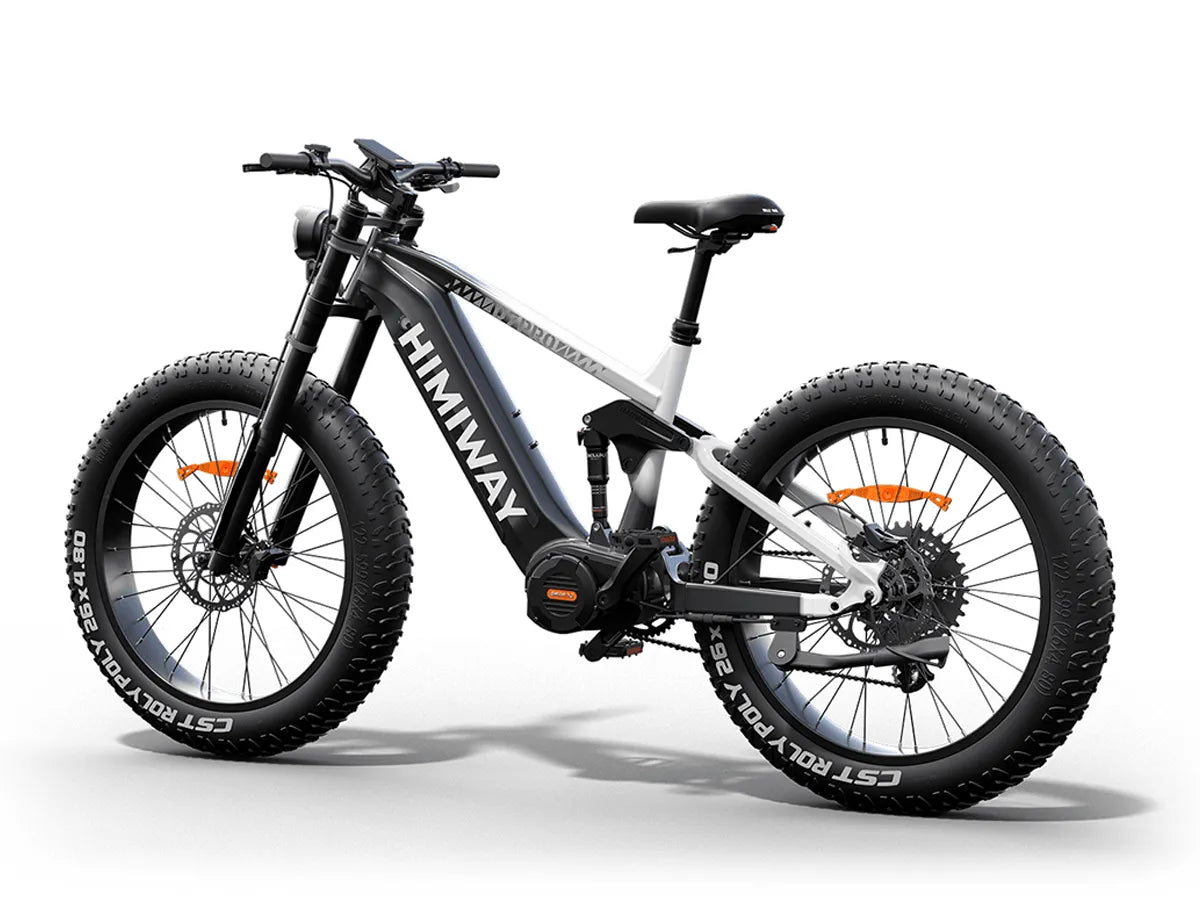

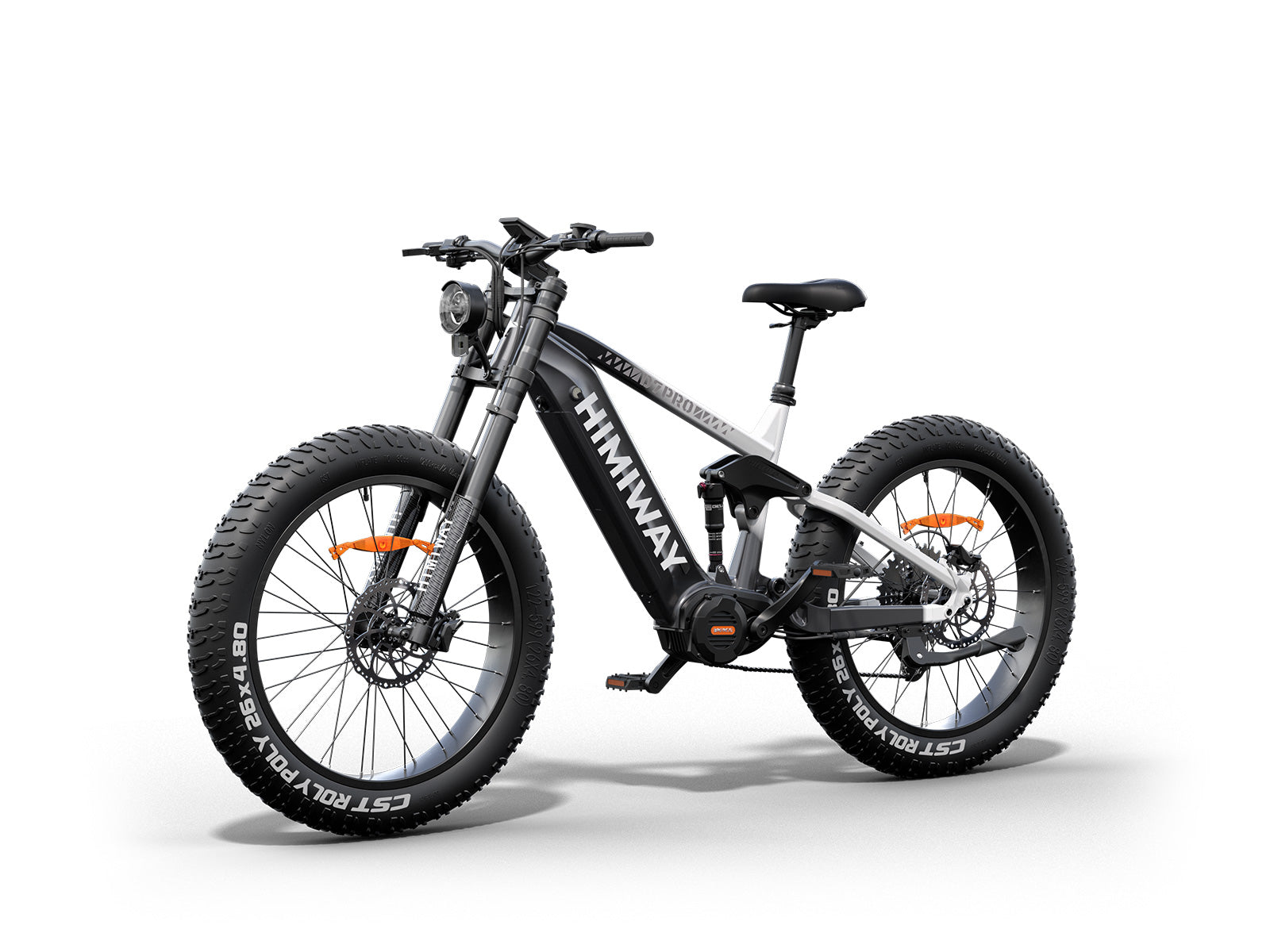

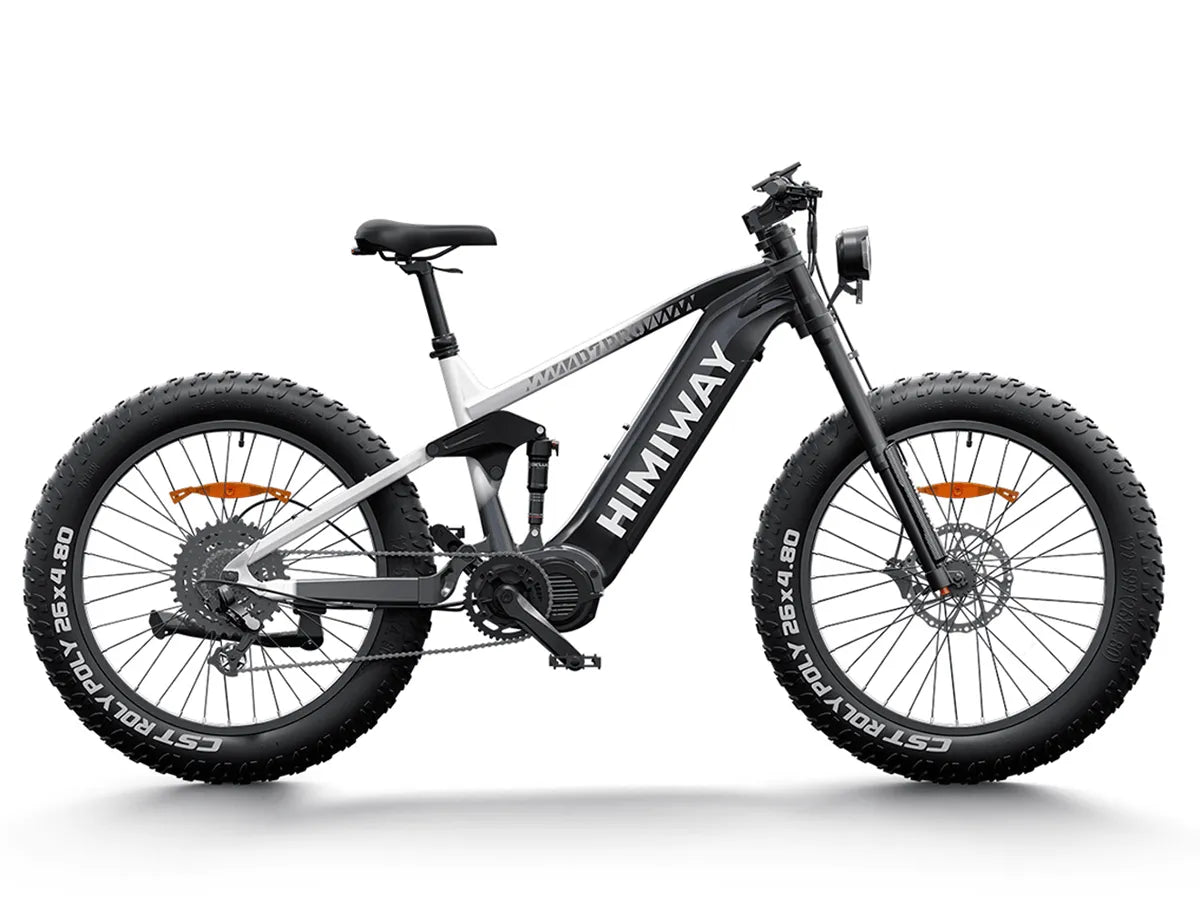

Himiway’s most capable off-road e-bike: a 1000W Bafang M620 mid-drive with up to 160 Nm, a long-travel inverted fork and a RockShox rear shock.
26 x 4.8 tires and 4-piston hydraulic brakes for steep, rough terrain, built for hunting trips and backcountry riding.
Top speed: Up to 28 mph.
Highlights
- 1000W Bafang M620 mid-drive motor (up to 160Nm torque)
- 48V 20Ah Samsung/LG battery (960Wh)
- Up to 80-mile riding range
- Full suspension system (inverted front fork + rear shock)
- 26" x 4.8" CST fat tires for extreme terrain
- Shimano CUES 10-speed drivetrain
- Hydraulic disc brakes (4-piston)
- Torque, speed, shifting, and brake sensors
Specifications
| Frame | 6061 Aluminum frame |
|---|---|
| Headset | Neco H383AE |
| Fork | KKE R150S inverted fork, ~220mm travel, adjustable |
| Rear Shock | RockShox Deluxe Select+ 190×45mm |
| Tires | CST 26" x 4.8" fat tires |
| Battery | Samsung/LG 48V 20Ah (960Wh) |
| Motor | Bafang M620 1000W mid-drive motor |
| Display | Bafang DP C18 LCD display |
| Throttle | Thumb throttle |
| Sensors | Torque, speed, shifting, brake sensors |
| Crankset | 170mm crank arm, 38T chainring |
| Cassette | Shimano 10-speed 11-48T |
| Chain | KMC Eglide 130L |
| Groupset | Shimano CUES U6000 10-speed |
| Front Brake | Tektro HD-E730 hydraulic 4-piston |
| Rear Brake | Tektro HD-E730 hydraulic 4-piston |
| Rotors | 203mm front / 180mm rear |
| Handlebar | Promax wide handlebar |
| Saddle | Selle Royal comfort saddle |
| Pedal | Aluminum pedals |
| Lights | 48V LED lighting system |
| Kickstand | Heavy-duty aluminum kickstand |
| Range | Up to 80 miles |
| Max Payload Capacity | 400 lb |
| Rider Height | 5’3" – 6’5" |
| Weight | ~88.6 lb |
| Top Speed | Up to 28 mph |
| Warranty | 2-year Skyline Volt warranty |
Delivery, returns and warranty
- Free shipping to the lower 48 states. Orders leave our warehouse in 0-1 business days and arrive in 2-5 business days.
- Ships by freight, mostly assembled, with tools and setup guide included.
- 14-day returns with a free return label. Items must be new and unused in original packaging.
- Every order is covered by the 2-year Skyline Volt warranty.
