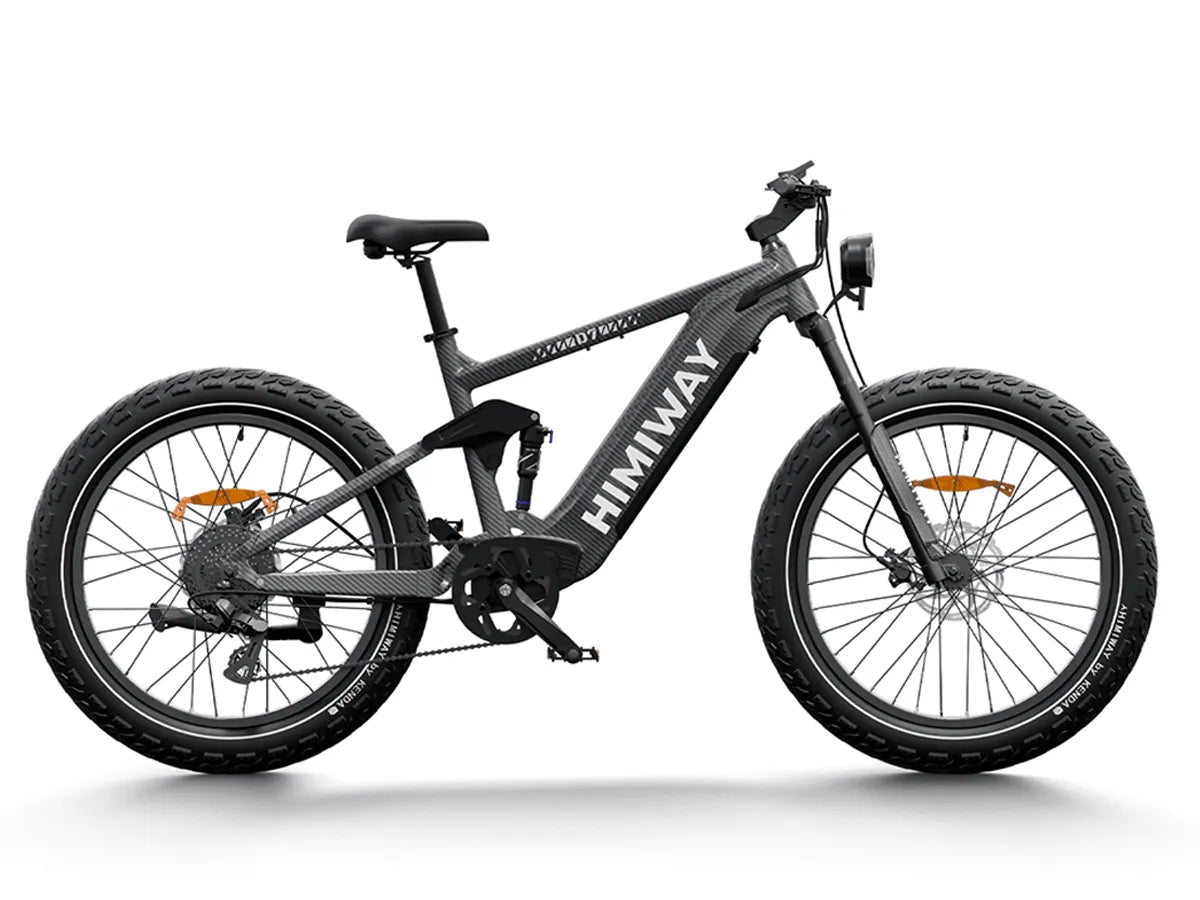

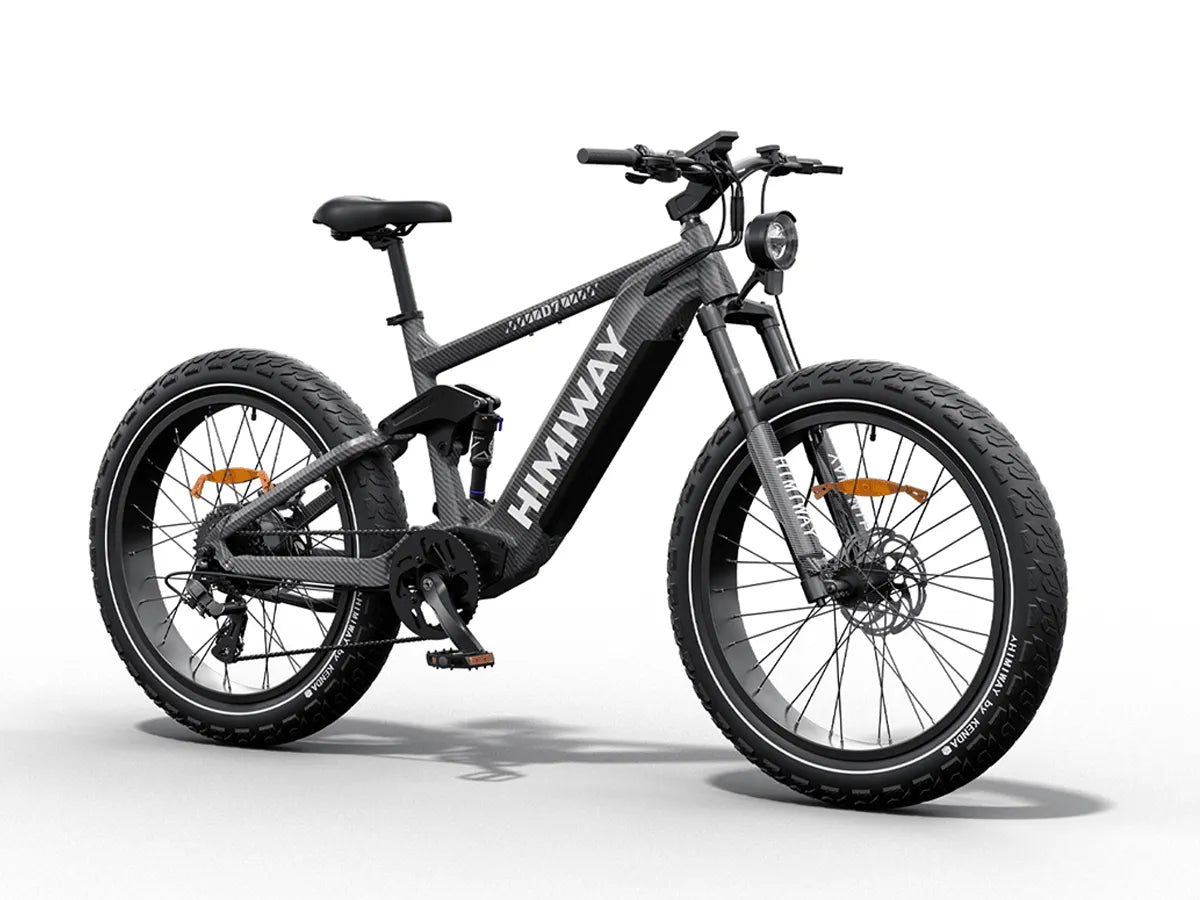

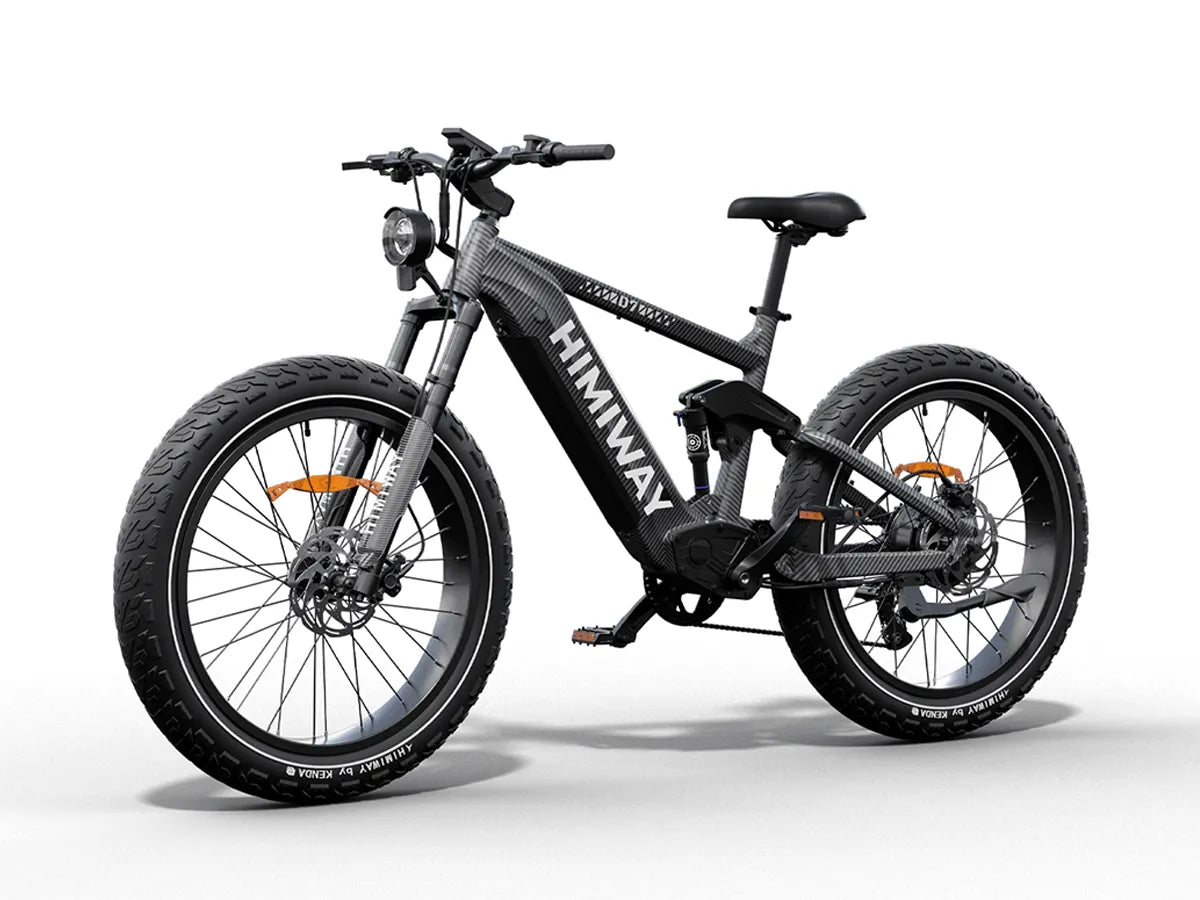

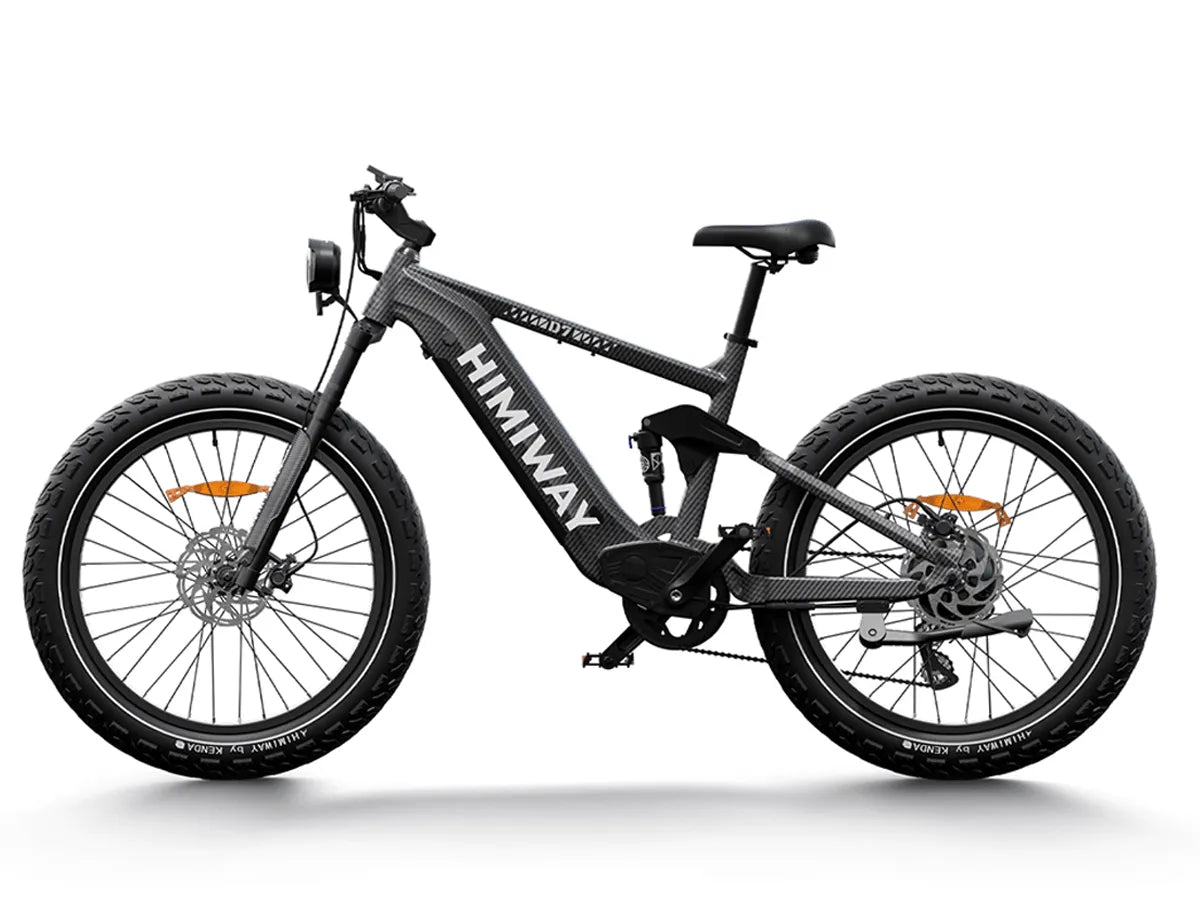

A full-suspension fat-tire hunting bike with a 1000W hub motor, inverted air fork and DNM rear shock for rough trails.
26 x 4.5 tires, a 960 Wh battery with up to 80 miles, and a 400 lb payload capacity.
Top speed: Up to 20 mph.
Highlights
- 1000W brushless geared hub motor
- 48V 20Ah Samsung/LG battery (960Wh)
- Up to 80-mile range
- Full suspension system (front inverted fork + rear shock)
- 26" x 4.5" CST fat tires for extreme terrain
- Torque sensor for natural pedal assistance
- Shimano 8-speed drivetrain
- Hydraulic disc brakes
Specifications
| Frame | 6061 Aluminum frame |
|---|---|
| Headset | Neco H383AEM 28.6 44 5639.8 |
| Fork | DASH-AIR-20 inverted fork, 120mm travel, lockout & rebound adjustable |
| Rear Shock | DNM A0-38RC 19045mm |
| Front Wheel | 26" 36H thru-axle wheel |
| Rear Wheel | Himiway 1000W hub motor wheel |
| Tires | Kenda X Himiway 26 x 4.5 |
| Battery | Samsung/LG 48V 20Ah (960Wh) |
| Motor | 1000W brushless geared hub motor |
| Display | LCD display with Type-C |
| Throttle | Thumb throttle |
| Sensors | Torque, speed, brake sensors |
| Crankset | 170mm crank arm, 40T chainring |
| Freewheel | Shimano CS-HG41 11-34T |
| Chain | KMC Z8.3 EPT |
| Groupset | Shimano Acera 8-speed |
| Front Brake | Hydraulic disc brake |
| Rear Brake | Hydraulic disc brake |
| Rotors | 180mm front/rear |
| Stem | Alloy 50mm |
| Handlebar | 780mm Promax handlebar |
| Saddle | Selle Royal comfort saddle |
| Pedal | Aluminum pedals |
| Lights | 48V LED lighting system |
| Kickstand | Heavy-duty aluminum kickstand |
| Range | Up to 80 miles |
| Controller | 48V/25A |
| Charger | 3.0A fast charger |
| Rider Height | 5’3" – 6’5" |
| Weight | ~88.6 lb with Battery |
| Max Payload Capacity | 400 lb |
| Top Speed | Up to 20 mph |
| Warranty | 2-year Skyline Volt warranty |
