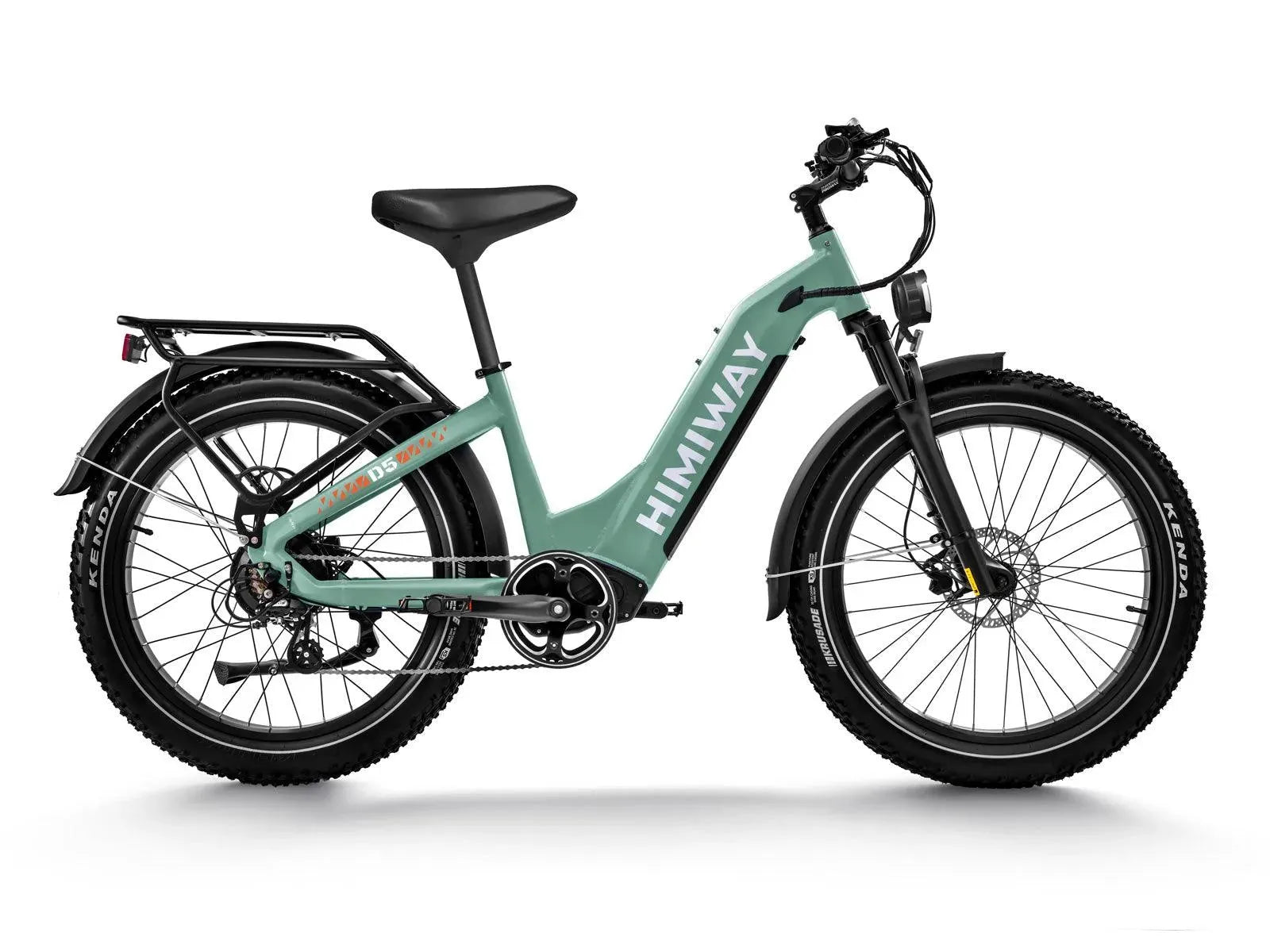

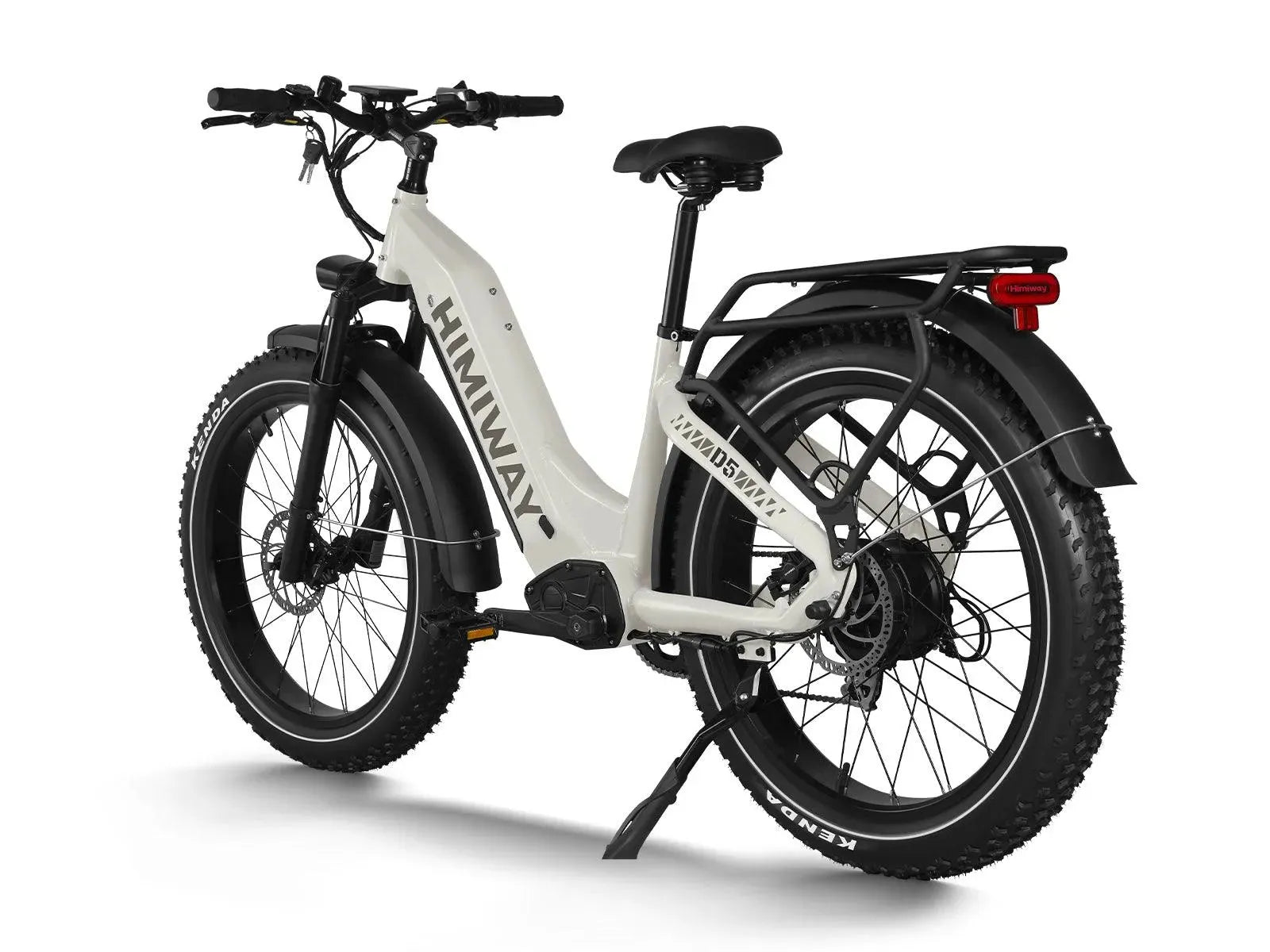

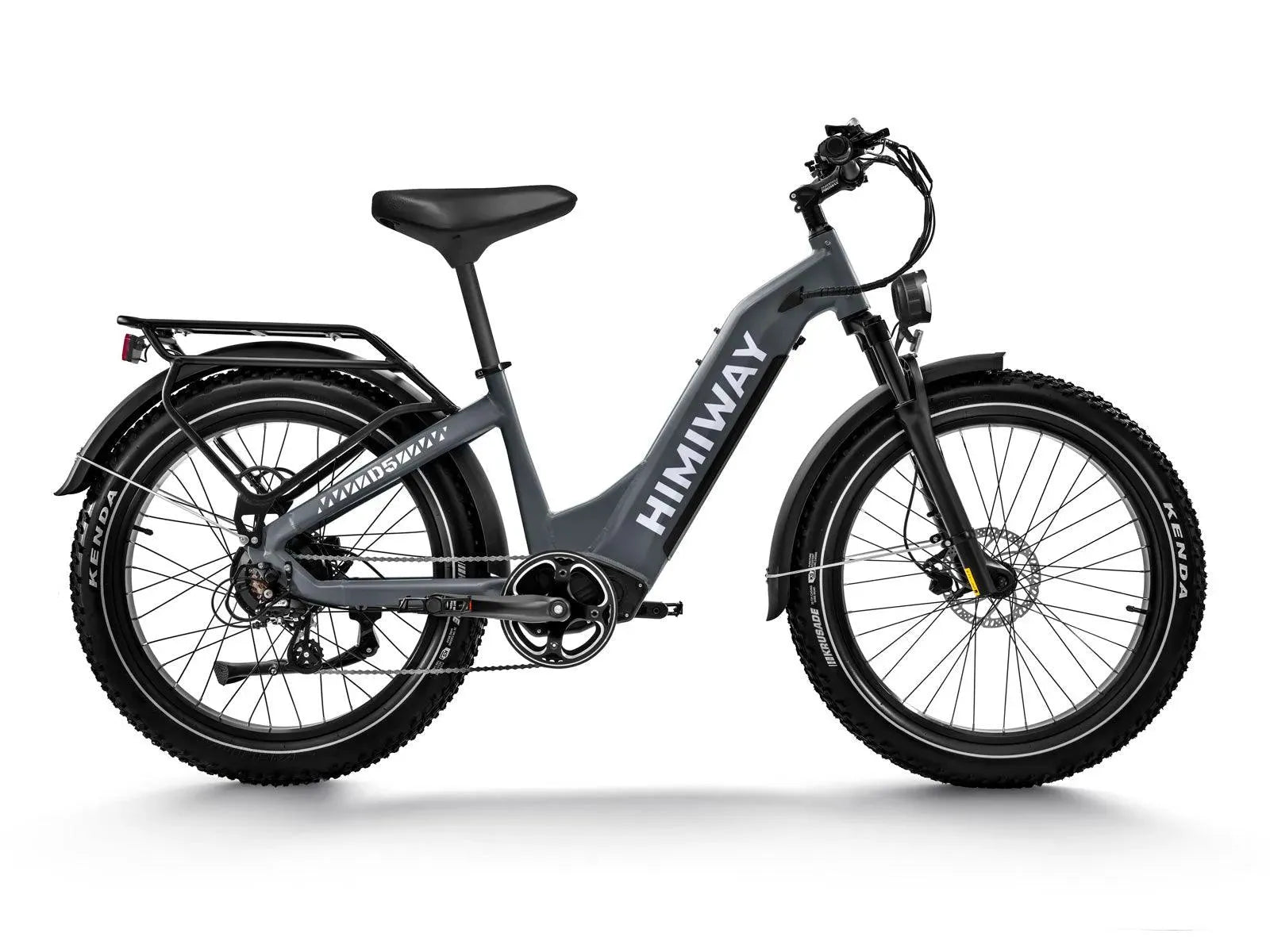

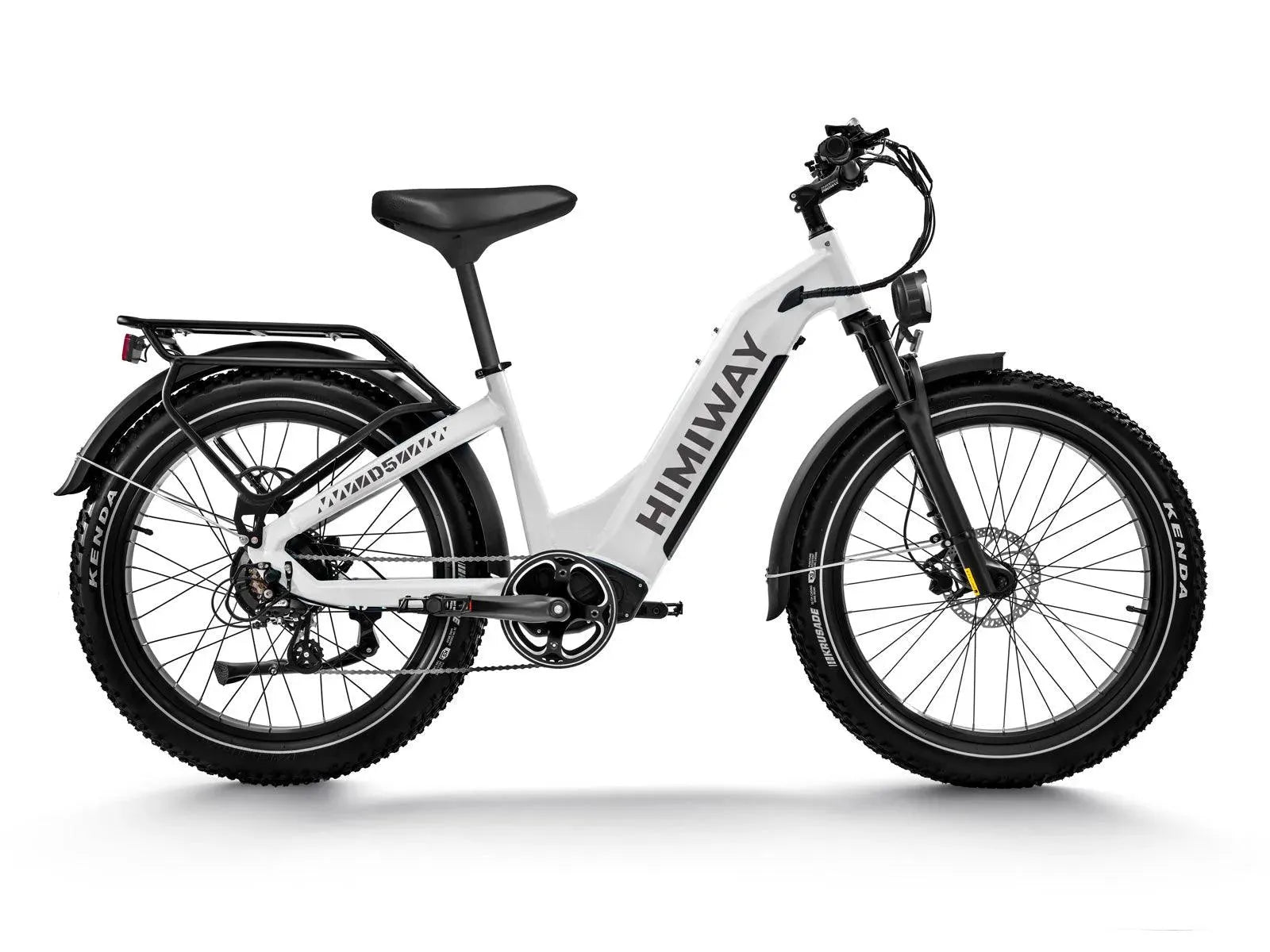

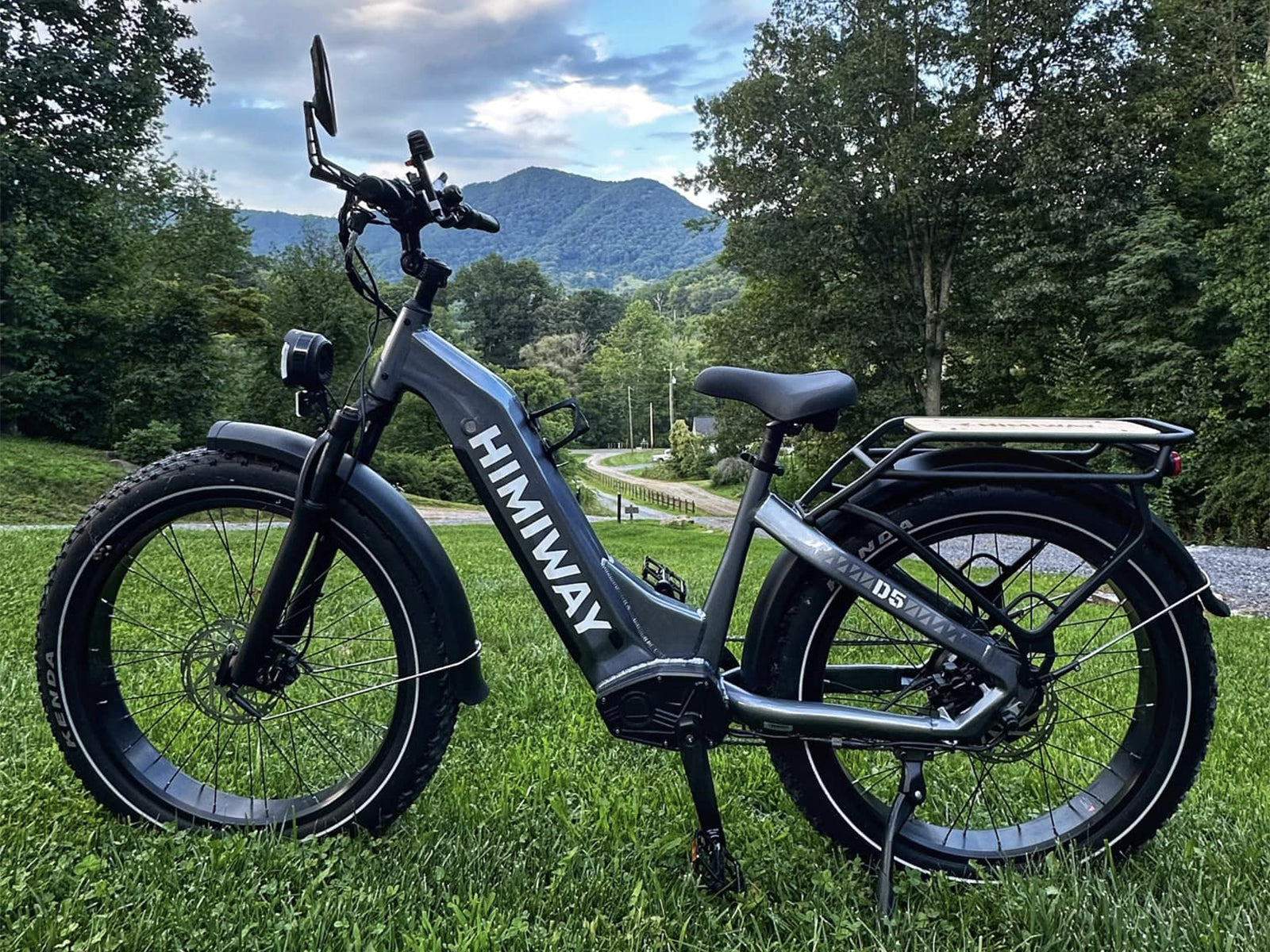

The popular D5 Zebra with a step-through frame: easy to get on and off, with the same 960 Wh battery and up to 80 miles of range.
Kenda fat tires, a 95 mm lockout fork and Shimano 9-speed.
Top speed: 20 mph out of the box (Class 2), switchable to 28 mph (Class 3) where local law allows.
Highlights
- 750W brushless geared hub motor (90Nm torque)
- 48V 20Ah Samsung/LG battery (960Wh)
- Up to 80-mile riding range
- Step-thru all-terrain aluminum frame design
- 26" x 4.0" Kenda fat tires for all-terrain grip
- 95mm front suspension fork with lockout
- Shimano Altus 9-speed drivetrain
- Hydraulic disc brakes (Tektro HD-E3520)
Specifications
| Frame | 6061 Aluminum frame |
|---|---|
| Headset | Neco H156EM 28.6 44-56 30 |
| Fork | 95mm travel suspension fork with lockout & adjustment |
| Tires | 26" x 4.0" Kenda fat tires |
| Battery | Samsung/LG 48V 20Ah (960Wh) |
| Motor | 750W brushless geared hub motor |
| Display | LCD display with USB charging |
| Throttle | Thumb throttle |
| Sensors | Torque, speed, brake sensors |
| Crankset | 170mm crank arm, 44T chainring |
| Freewheel | Shimano 9-speed (11-36T) |
| Chain | KMC E9 series |
| Groupset | Shimano Altus 9-speed |
| Front Brake | Tektro HD-E3520 hydraulic disc |
| Rear Brake | Tektro HD-E3520 hydraulic disc |
| Rotors | 180mm front / rear |
| Stem | Alloy stem |
| Handlebar | Alloy handlebar |
| Saddle | Comfort saddle |
| Pedal | Aluminum pedals |
| Lights | 48V LED lighting system |
| Kickstand | Heavy-duty aluminum kickstand |
| Range | Up to 80 miles |
| Max Payload Capacity | 400 lb |
| Rider Height | 5’3" – 6’5" |
| Top Speed | 20 mph out of the box (Class 2), switchable to 28 mph (Class 3) where local law allows |
| Warranty | 2-year Skyline Volt warranty |
