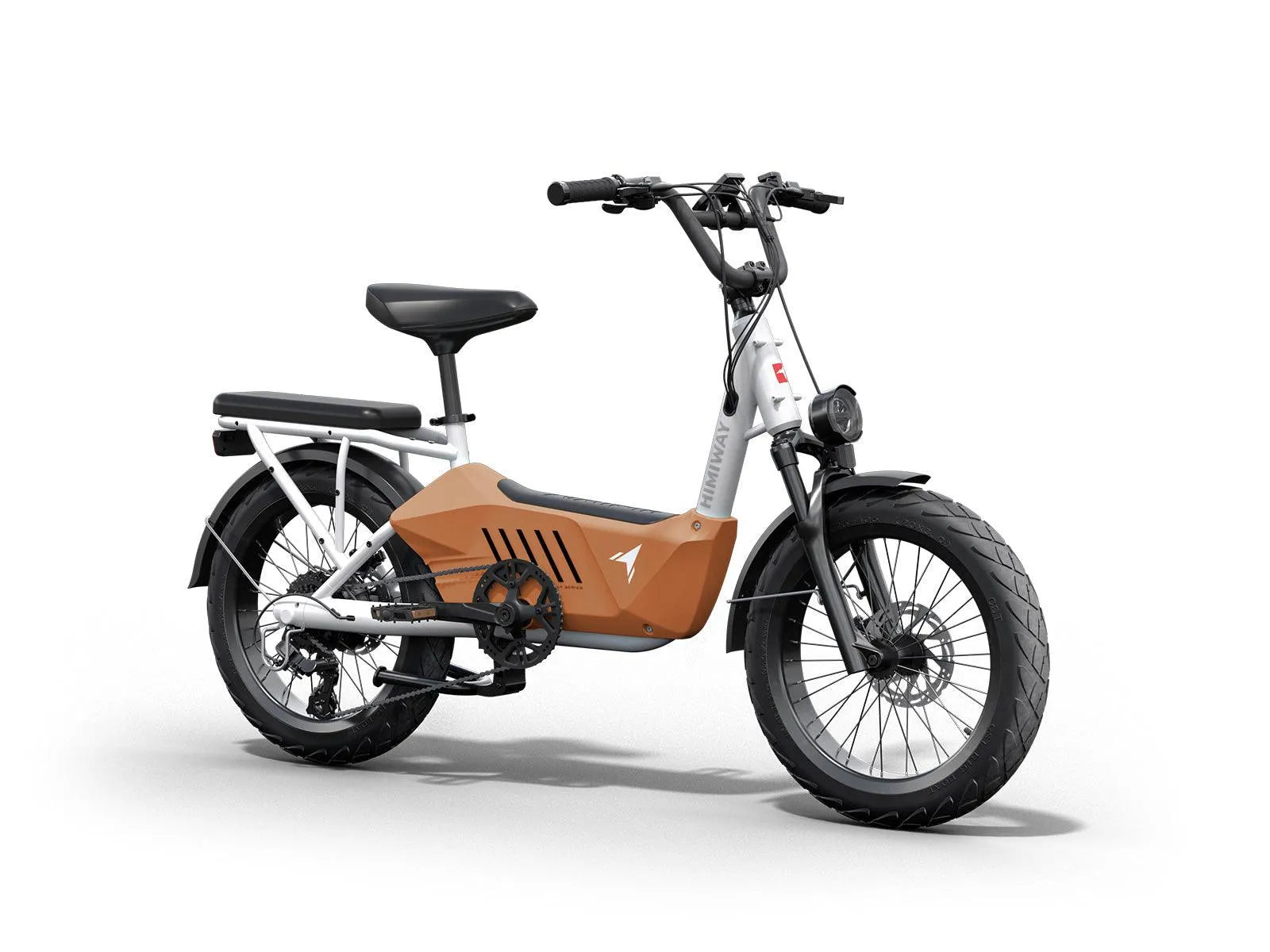

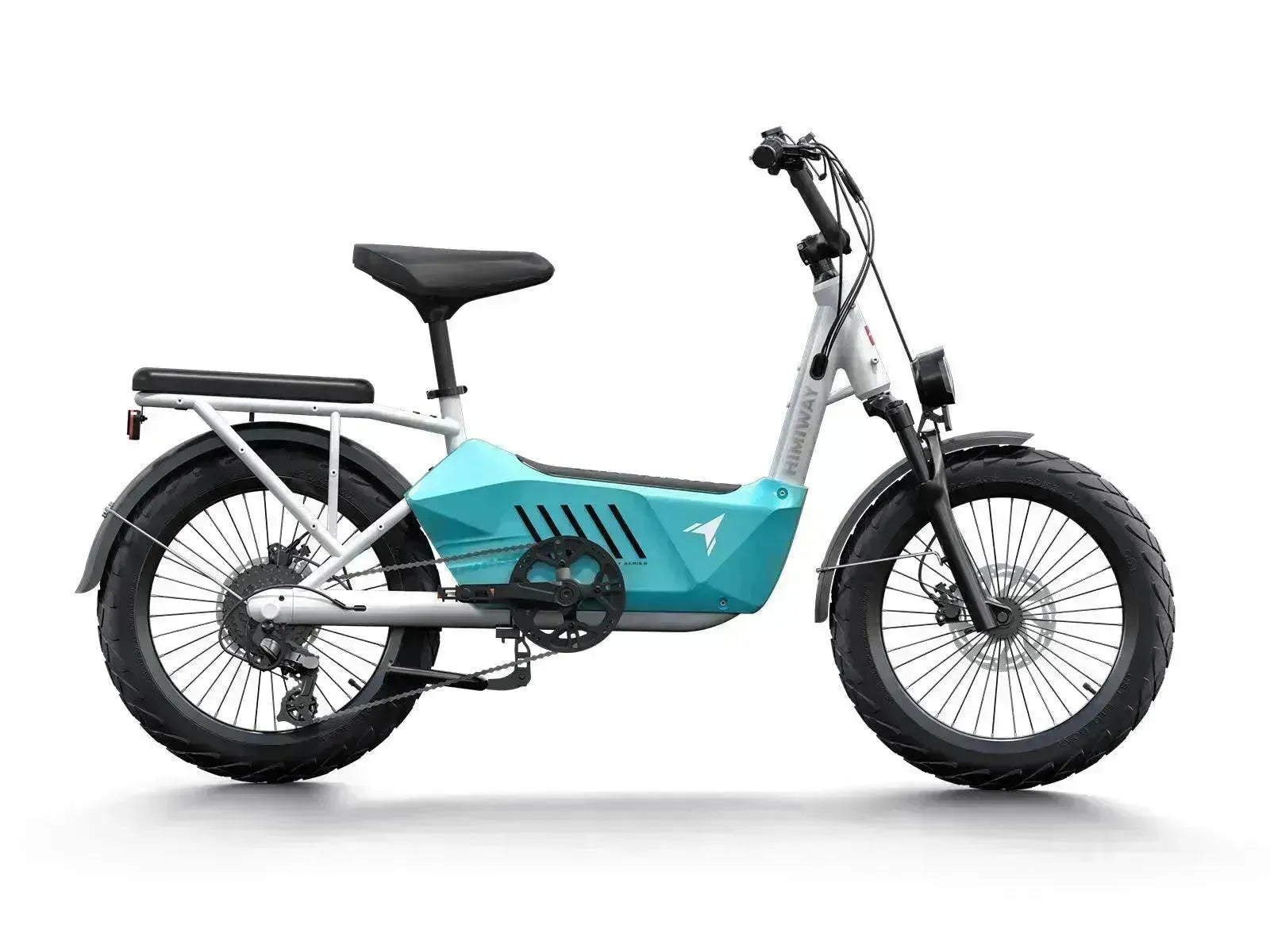

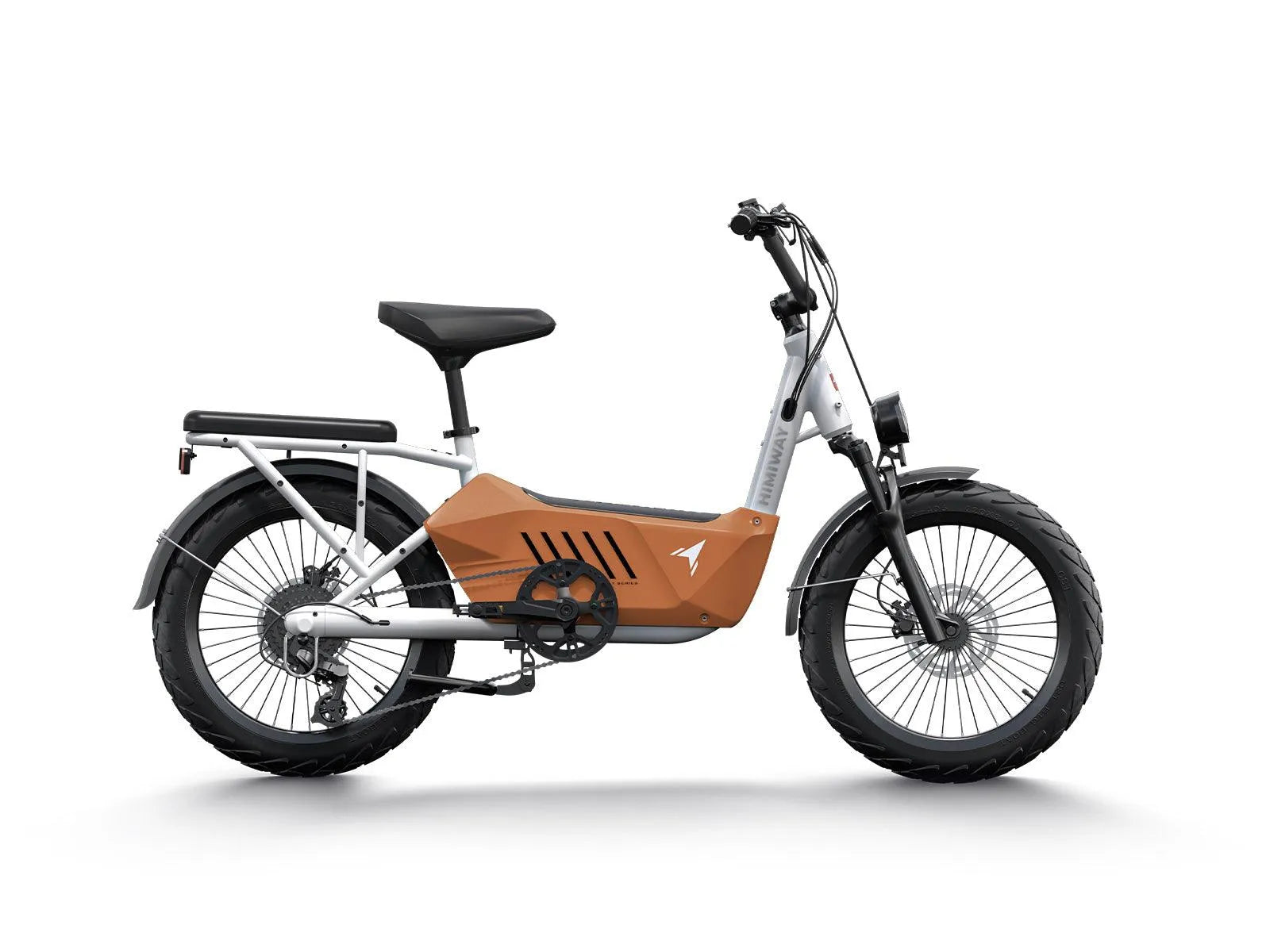

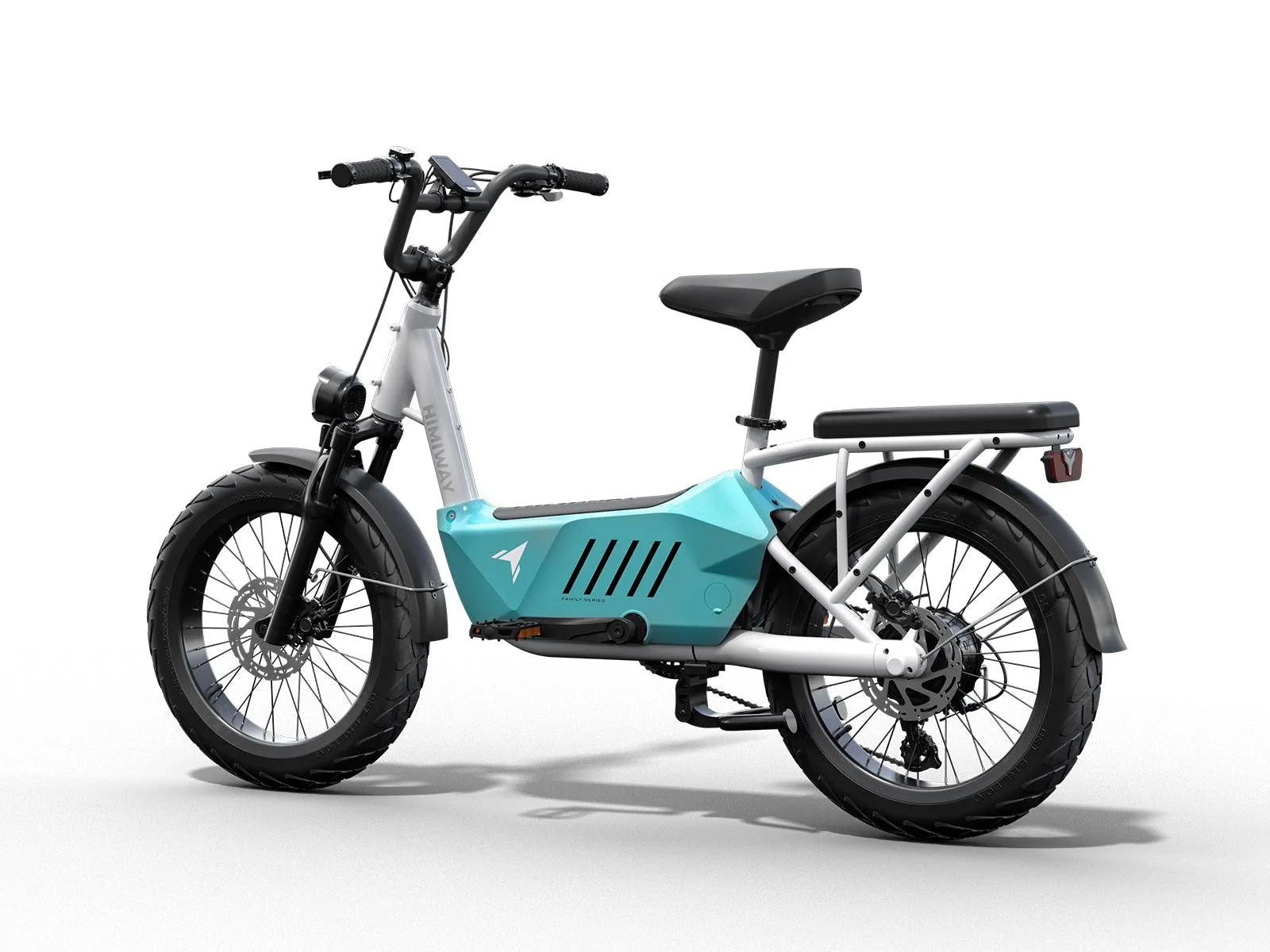

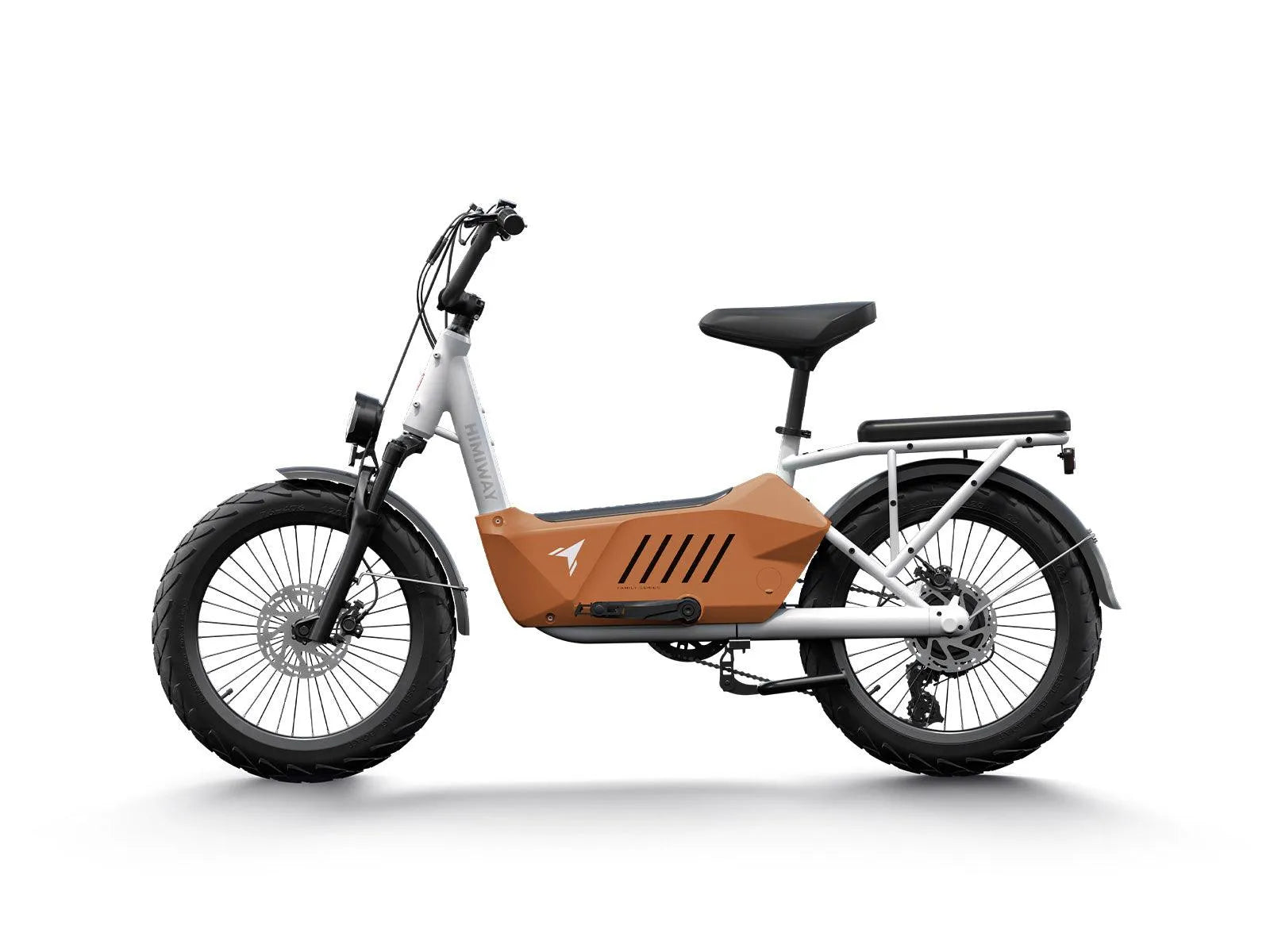

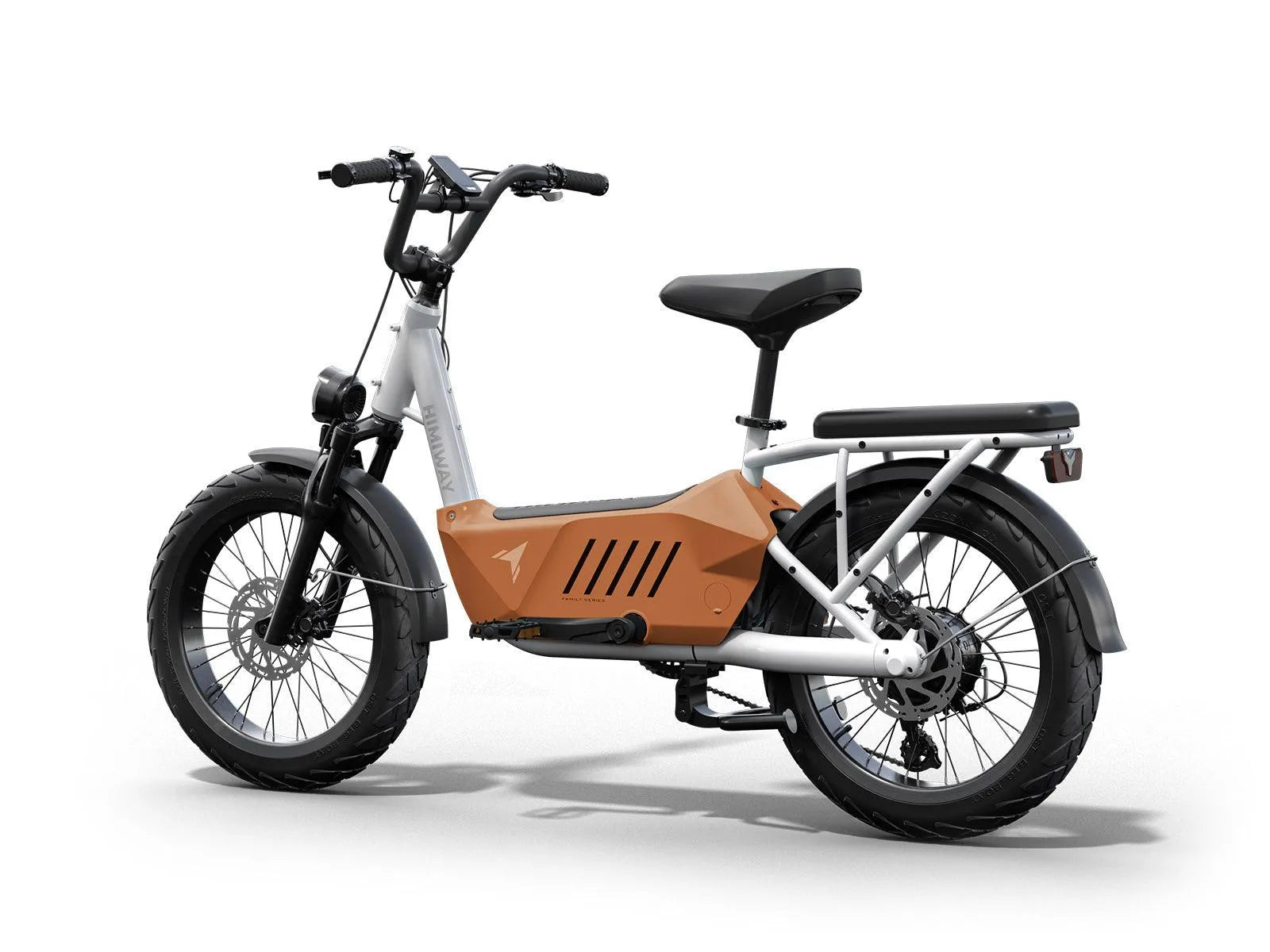

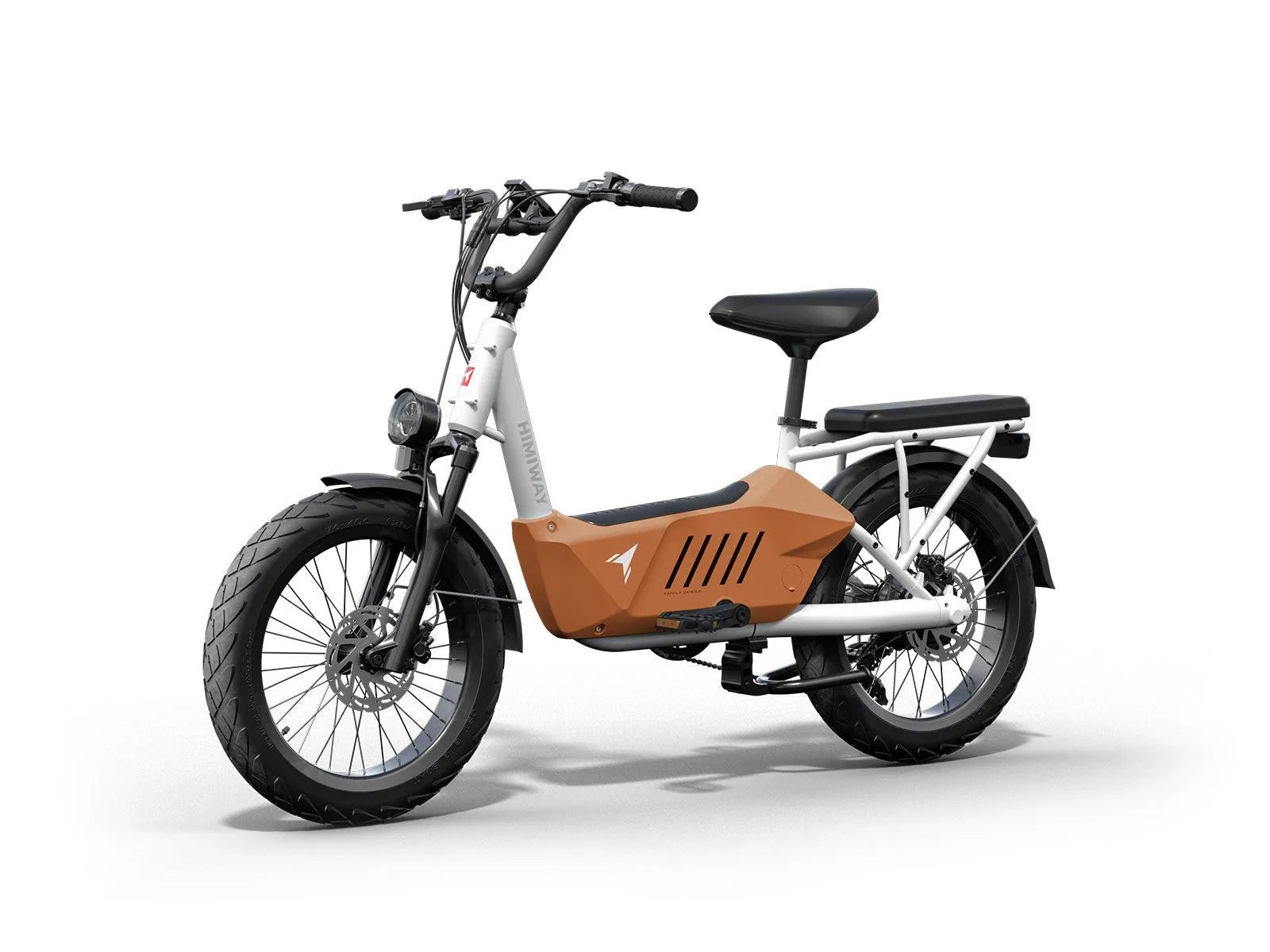

A cargo e-bike built for school runs, grocery trips and deliveries. The rear rack carries up to 120 lbs and the total payload is 450 lbs.
A 750W motor and 960 Wh battery deliver up to 80 miles, with hydraulic brakes for confident stops under load.
Top speed: 20 mph out of the box (Class 2), switchable to 28 mph (Class 3) where local law allows.
Highlights
- 750W brushless geared hub motor
- 48V 20Ah Samsung/LG removable battery
- Up to 80-mile range
- Step-thru cargo bike frame design
- Integrated rear cargo rack
- Hydraulic disc brakes
- Shimano 7-speed drivetrain
- Front suspension fork
Specifications
| Frame | 6061 Aluminum frame |
|---|---|
| Headset | Neco H383 |
| Fork | Coil suspension fork with lockout and adjustment |
| Front Wheel | Alloy rim |
| Rear Wheel | Alloy rim |
| Tires | Kenda 20" x 3.0" tires |
| Battery | Samsung/LG 48V 20Ah |
| Motor | 750W brushless gear motor |
| Display | LCD display |
| Throttle | Thumb throttle |
| Sensors | Cadence sensor |
| Crankset | 170mm forged alloy crankset |
| Freewheel | Shimano 14-28T |
| Chain | KMC chain |
| Groupset | Shimano 7-speed |
| Front Brake | Hydraulic disc brake |
| Rear Brake | Hydraulic disc brake |
| Rotors | 180mm rotors |
| Stem | Adjustable alloy stem |
| Handlebar | Aluminum handlebar |
| Saddle | Comfort saddle |
| Pedal | Platform pedals |
| Lights | Integrated LED front and rear lights |
| Kickstand | Heavy-duty kickstand |
| Rear Rack Capacity | 120 lb. |
| Range | 60-80 miles |
| Controller | 48V controller |
| Charger | Smart charger |
| Rider Height | 5’1" ~ 6’5" |
| Weight | 88 lb. |
| Max. Payload Capacity | 450 lb. |
| Top Speed | 20 mph out of the box (Class 2), switchable to 28 mph (Class 3) where local law allows |
| Warranty | 2-year Skyline Volt warranty |
