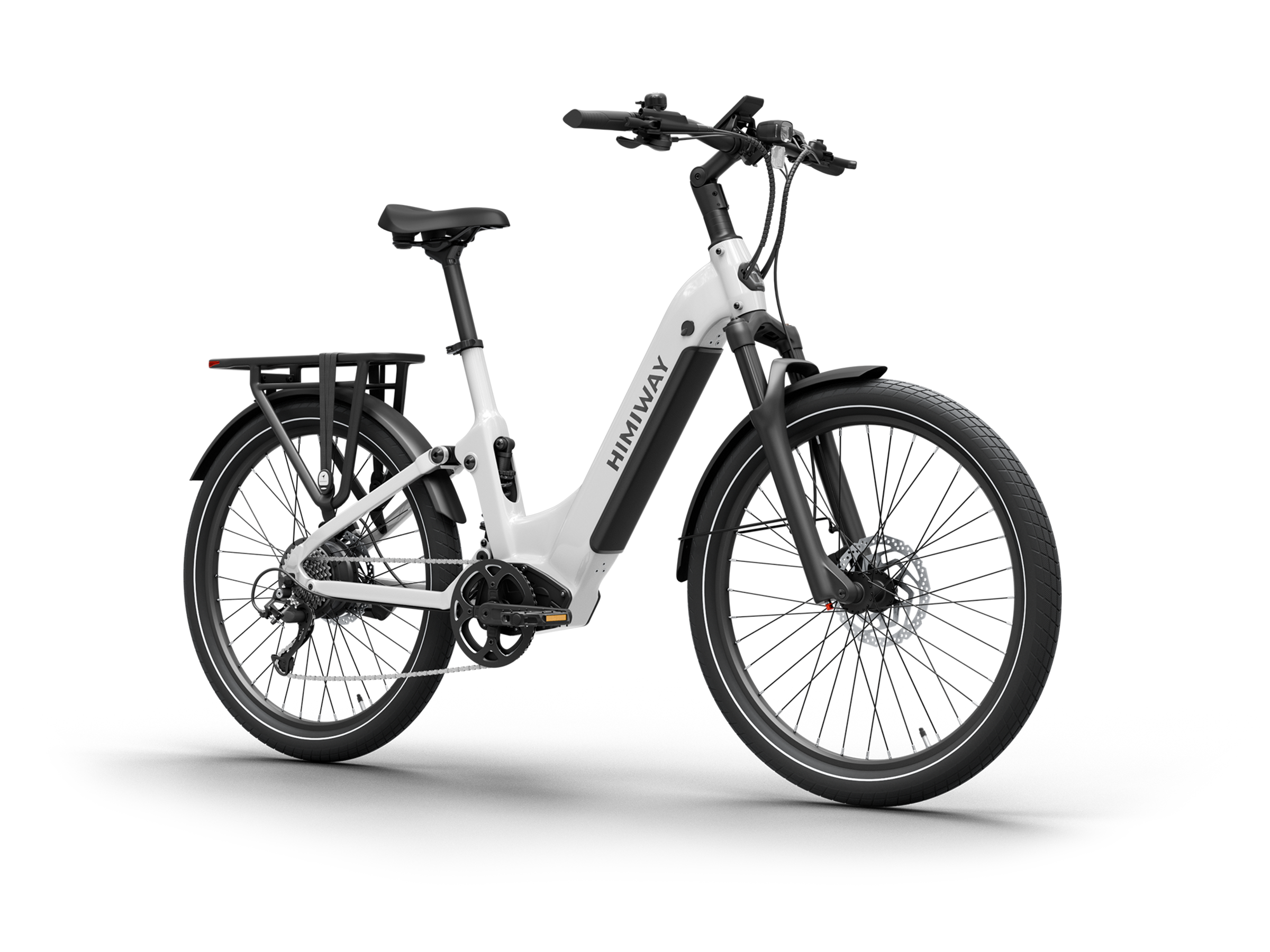

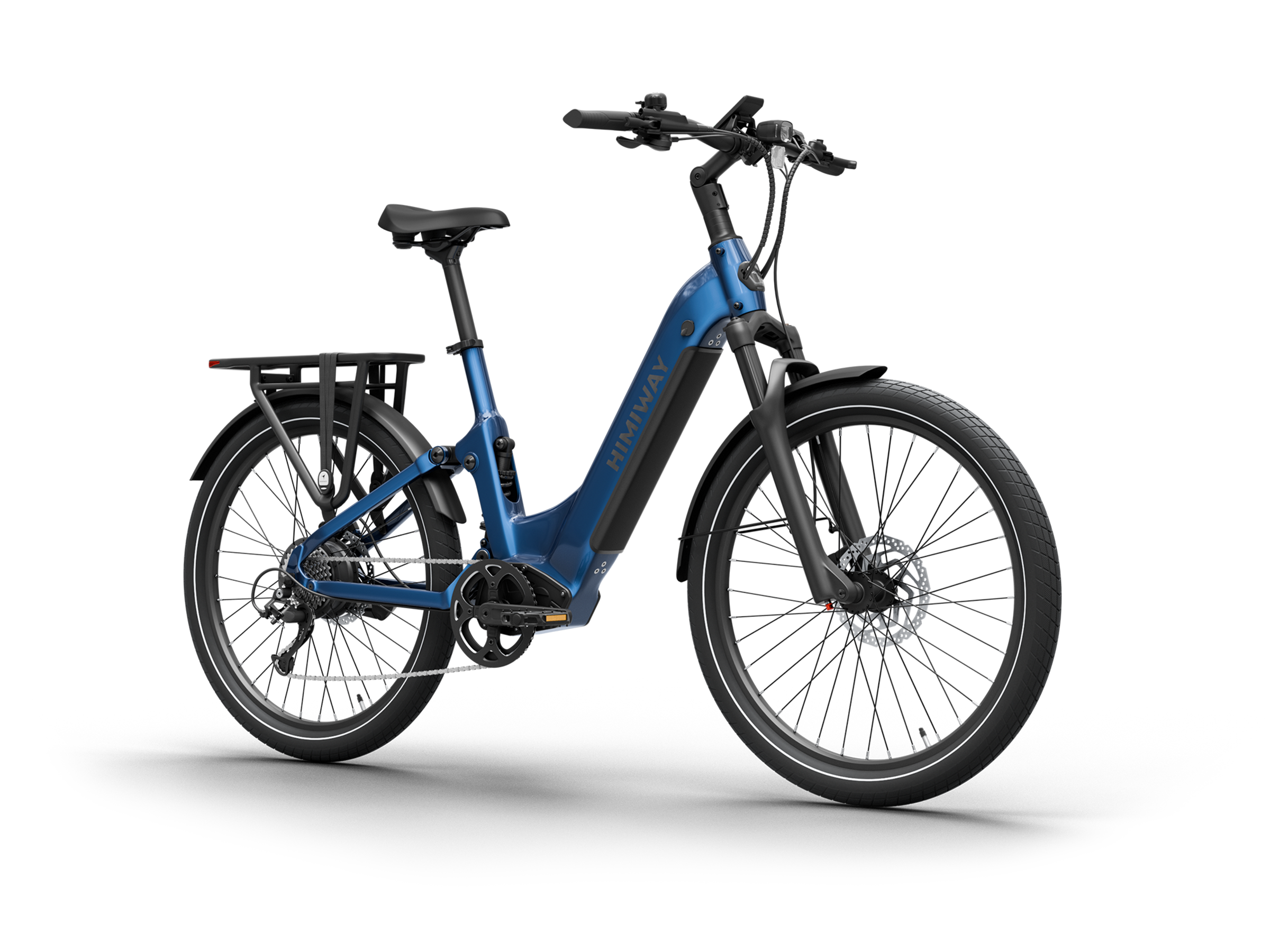

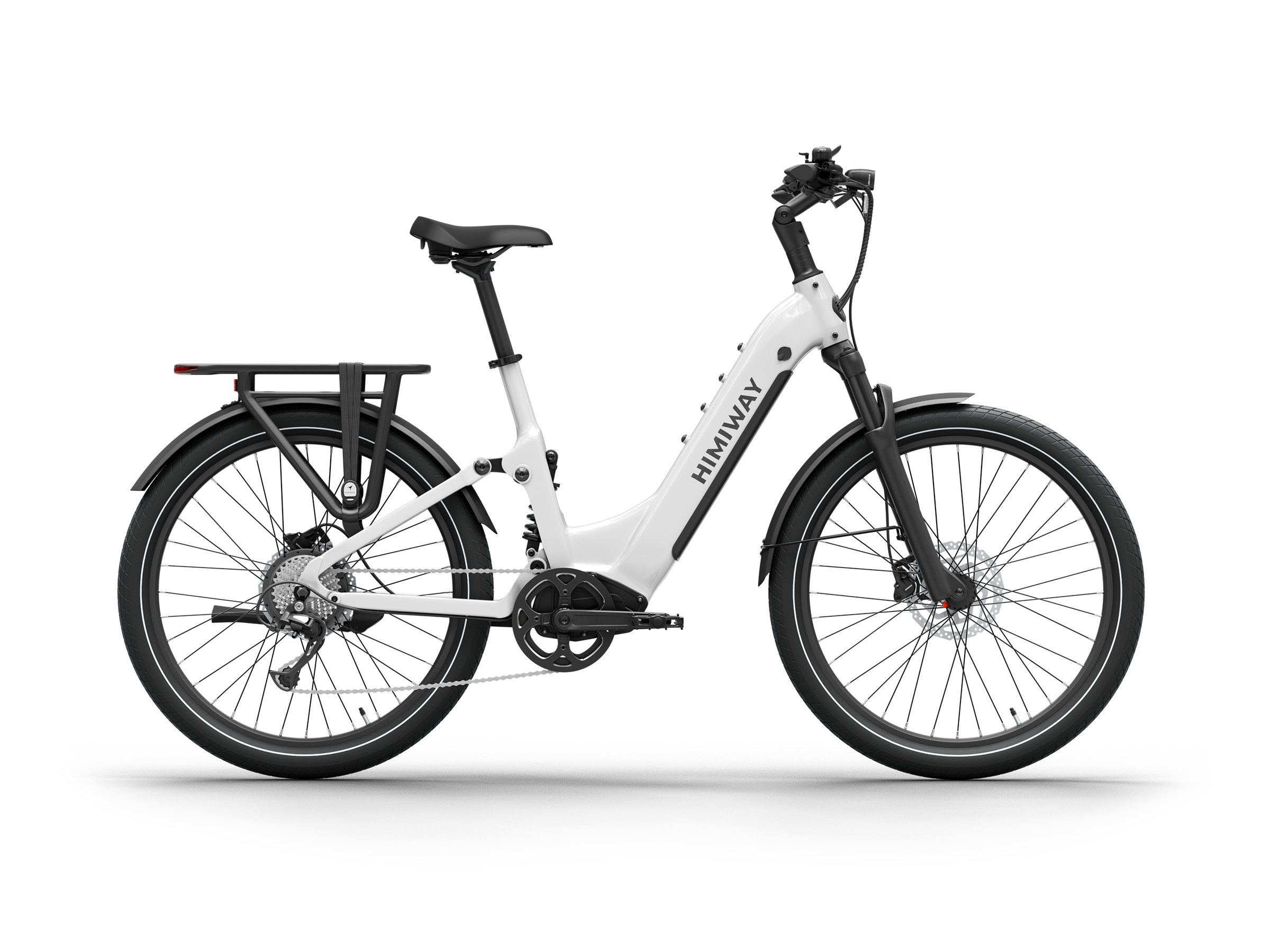

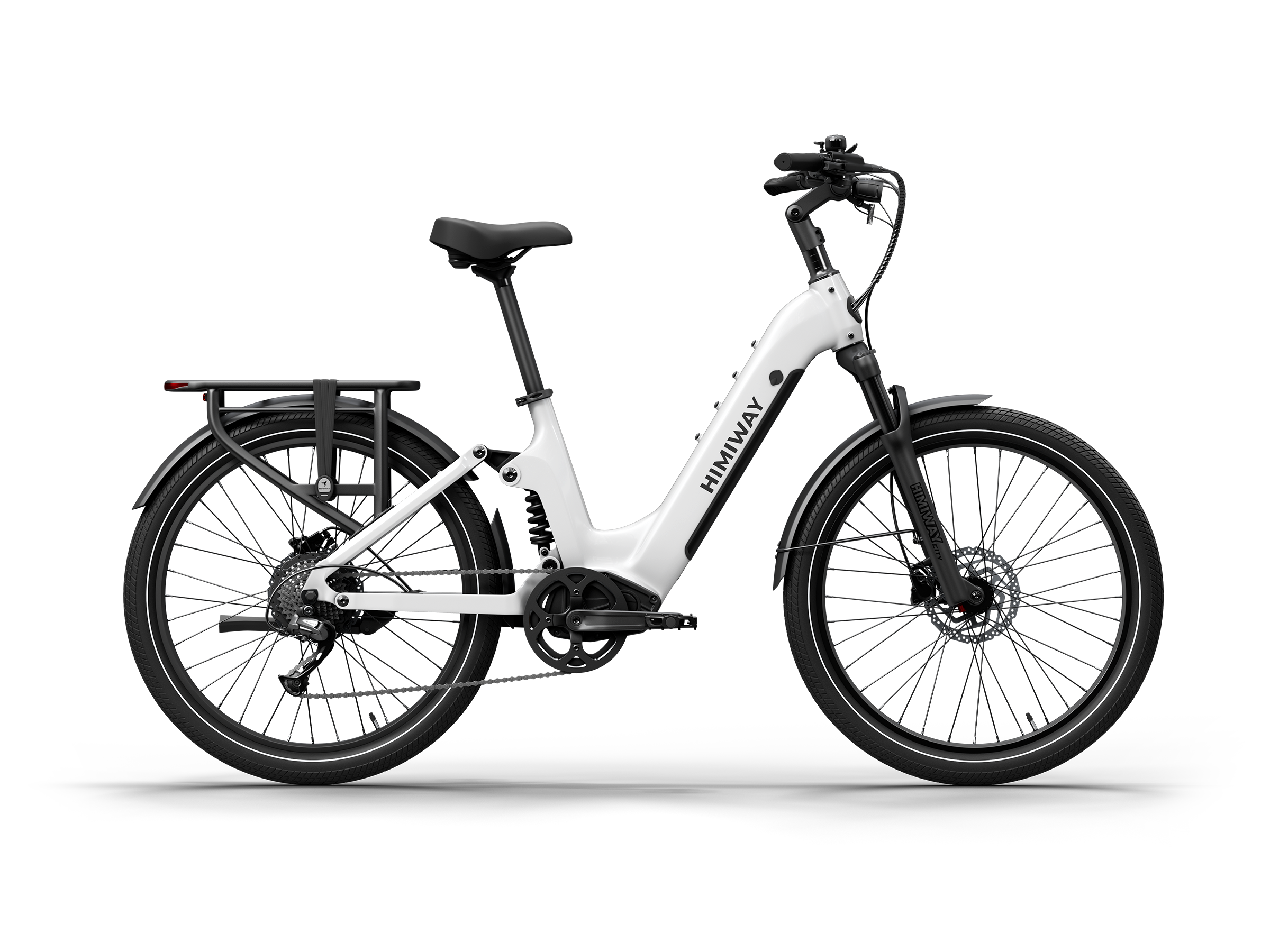

A step-through commuter with full suspension (120 mm fork and four-link rear) for a smooth ride over broken pavement.
Switchable torque or cadence sensing, Shimano hydraulic brakes and up to 70 miles of pedal-assist range.
Top speed: 20 mph out of the box, adjustable up to 28 mph.
Highlights
- 500W rear hub motor (70Nm torque)
- 48V 15Ah Samsung/LG battery (720Wh)
- Up to 70-mile pedal-assist range / 40-mile throttle range
- Full suspension system (120mm front fork + rear shock)
- Torque & cadence switchable sensor system
- Shimano 8-speed drivetrain
- Shimano MT200 hydraulic disc brakes
- 27.5" x 2.4" commuter tires
Specifications
| Frame | Aluminum alloy step-through frame |
|---|---|
| Fork | 120mm hydraulic suspension fork (lockout, rebound adjustable) |
| Rear Suspension | Four-link rear shock system (90mm travel) |
| Motor | 500W rear hub motor (70Nm) |
| Battery | 48V 15Ah Samsung/LG (720Wh) |
| Display | 3.5" color LCD display with Bluetooth |
| Throttle | Ergonomic thumb throttle |
| Sensors | Torque / cadence switchable |
| Drivetrain | Shimano 8-speed |
| Shifter | Shimano 8-speed |
| Brake System | Shimano MT200 hydraulic disc brakes |
| Rotors | 180mm front and rear |
| Tires | 27.5" x 2.4" eBike tires |
| Crankset | 170mm aluminum alloy |
| Chain | 8-speed chain |
| Stem | Adjustable 0-60° alloy stem |
| Handlebar | 680mm aluminum alloy |
| Saddle | Wide ergonomic comfort saddle |
| Seatpost | Aluminum alloy |
| Lights | Integrated LED front & rear |
| Rack | MIK-compatible rear rack (modular accessories) |
| Kickstand | Aluminum alloy rear kickstand |
| Range | Up to 70 miles (PAS) / 40 miles throttle |
| Payload Capacity | 400 lb |
| Bike Weight | ~84 lb |
| Rider Height | 5’1" – 6’3" |
| Top Speed | 20 mph out of the box, adjustable up to 28 mph |
| Warranty | 2-year Skyline Volt warranty |
Delivery, returns and warranty
- Free shipping to the lower 48 states. Orders leave our warehouse in 0-1 business days and arrive in 2-5 business days.
- Ships by freight, mostly assembled, with tools and setup guide included.
- 14-day returns with a free return label. Items must be new and unused in original packaging.
- Every order is covered by the 2-year Skyline Volt warranty.
