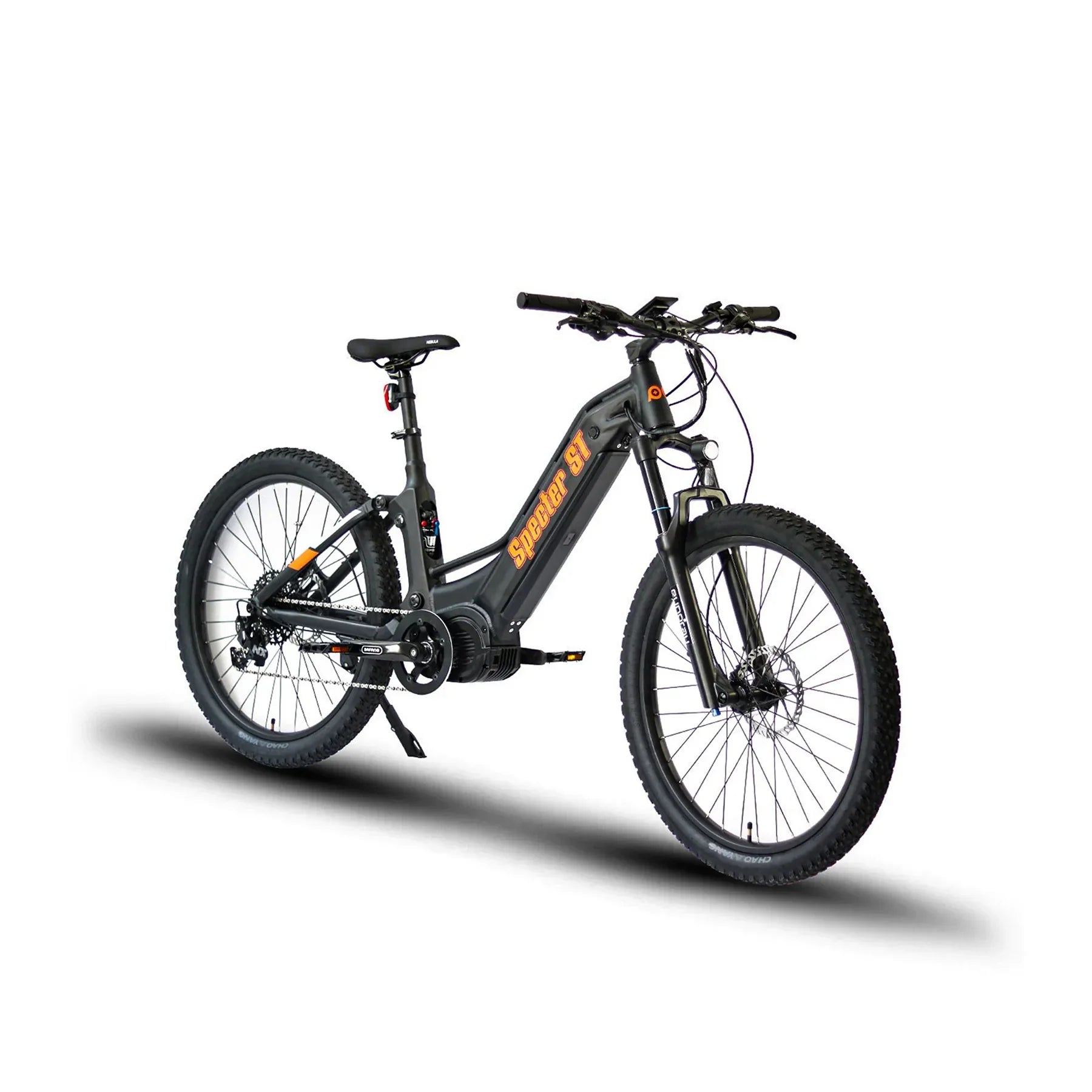

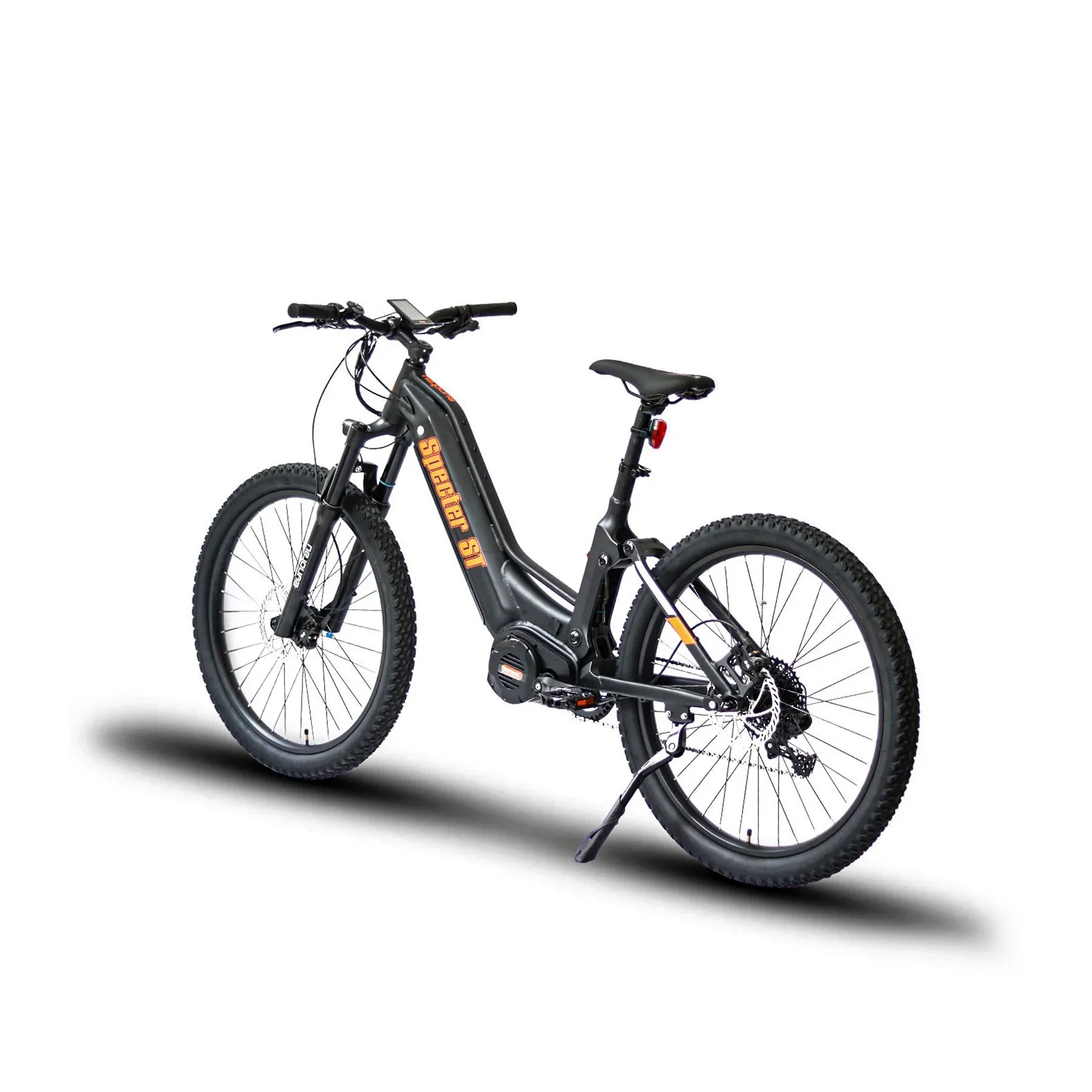

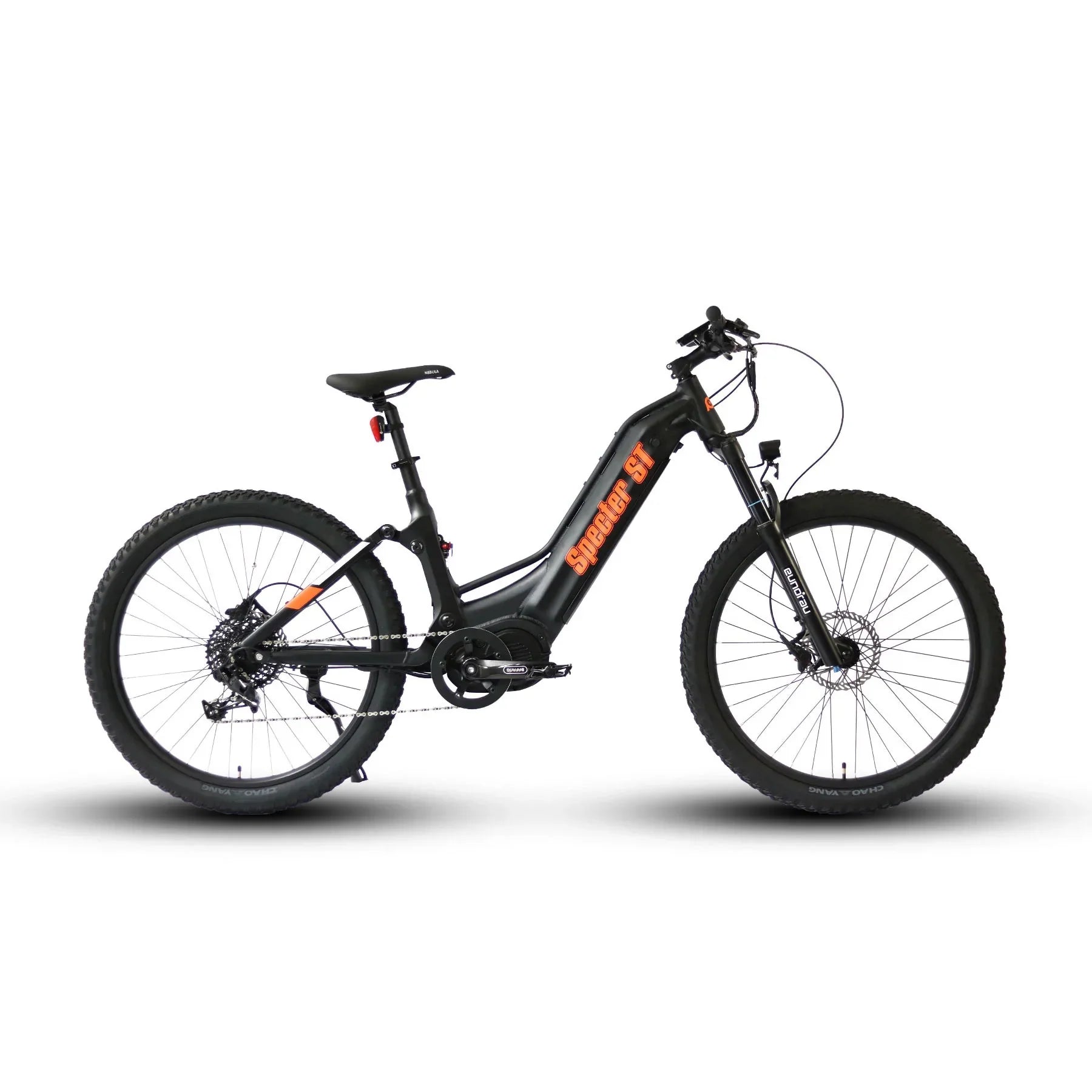

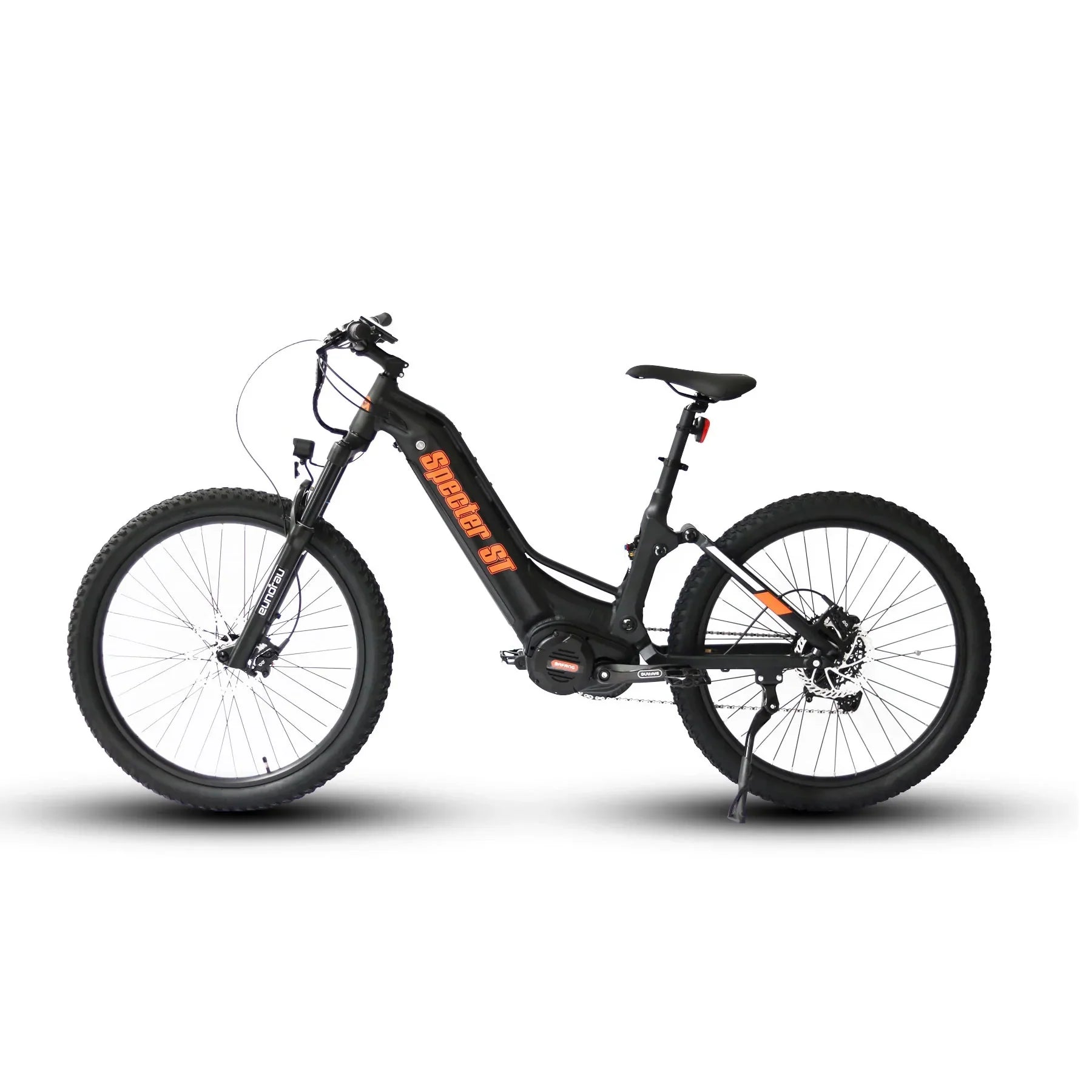

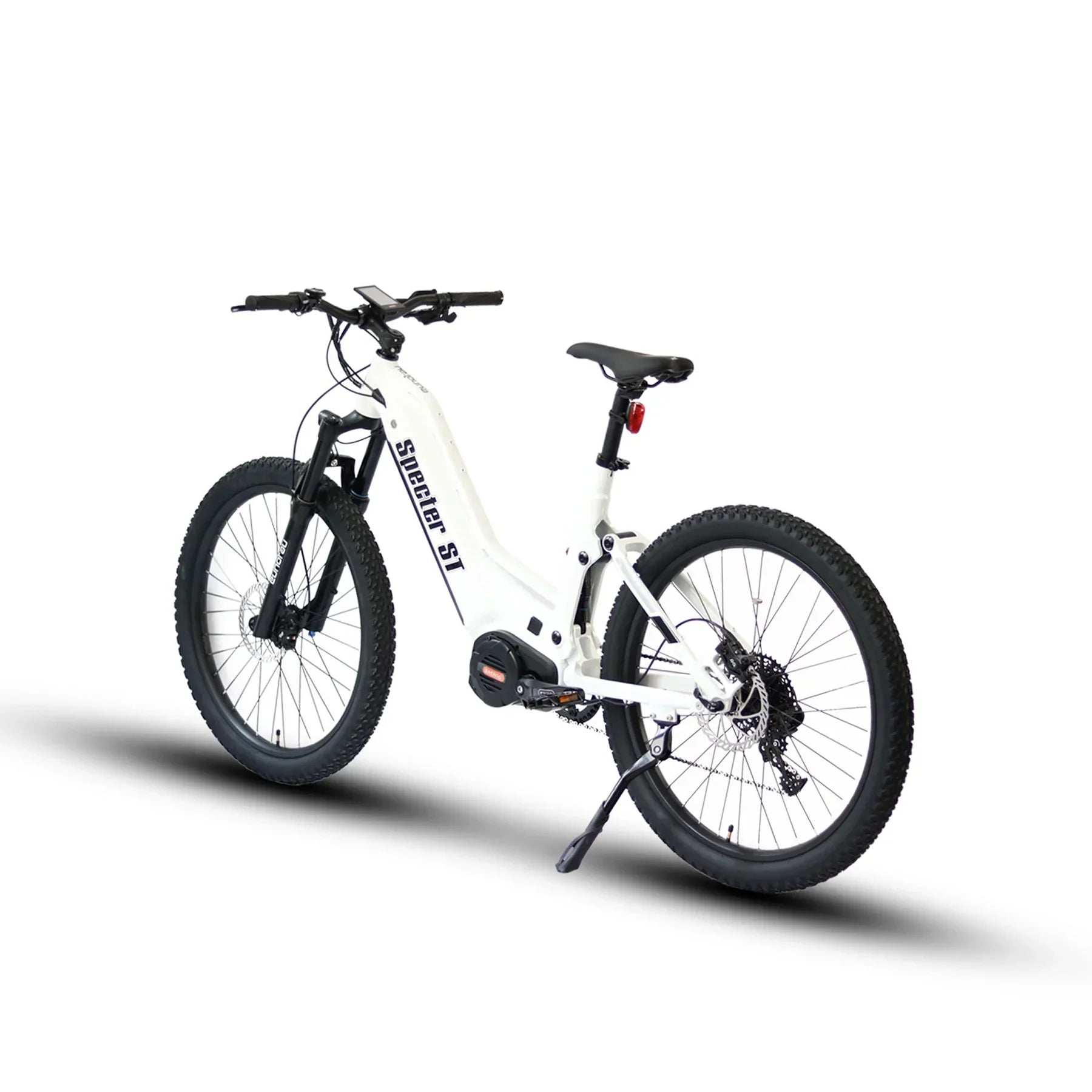

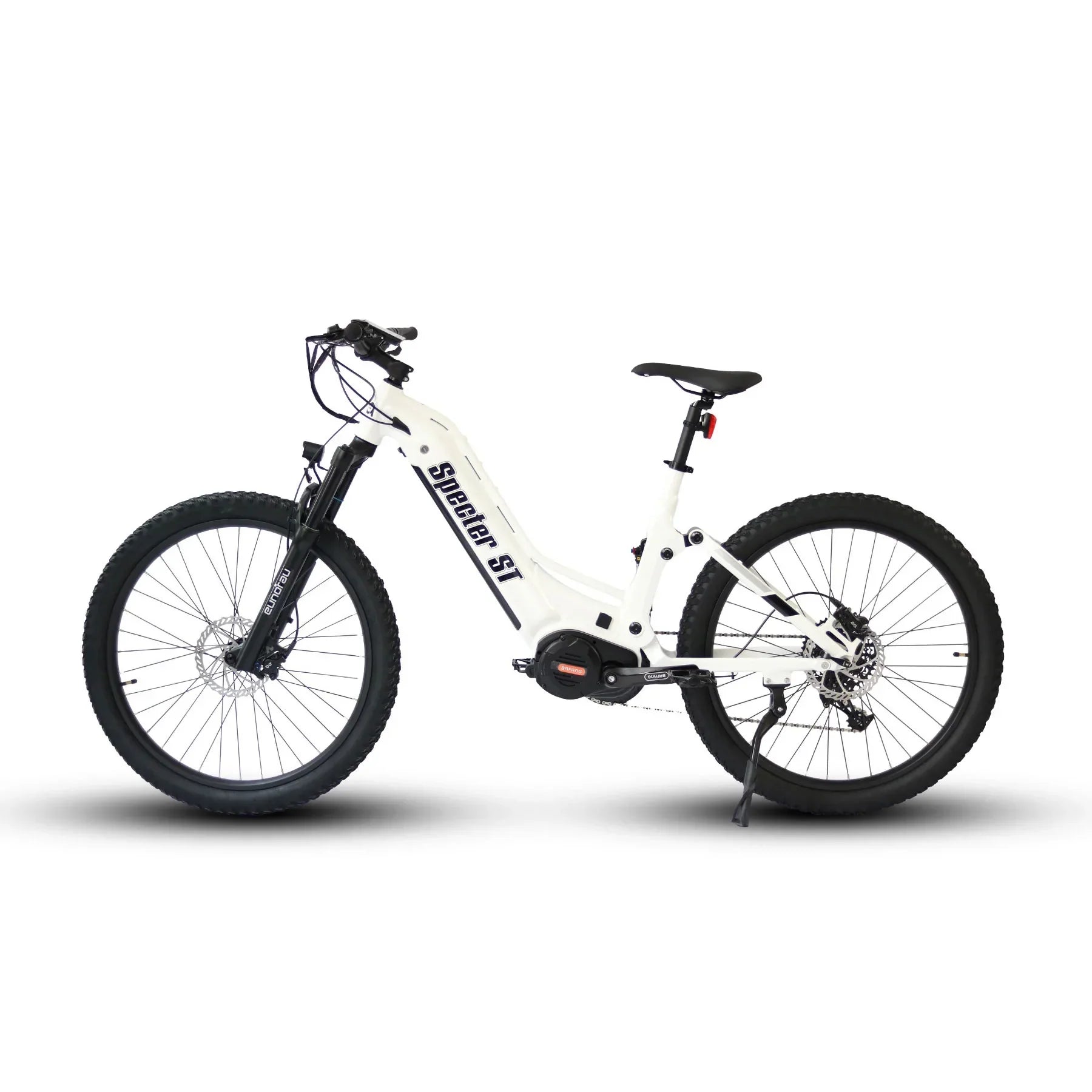

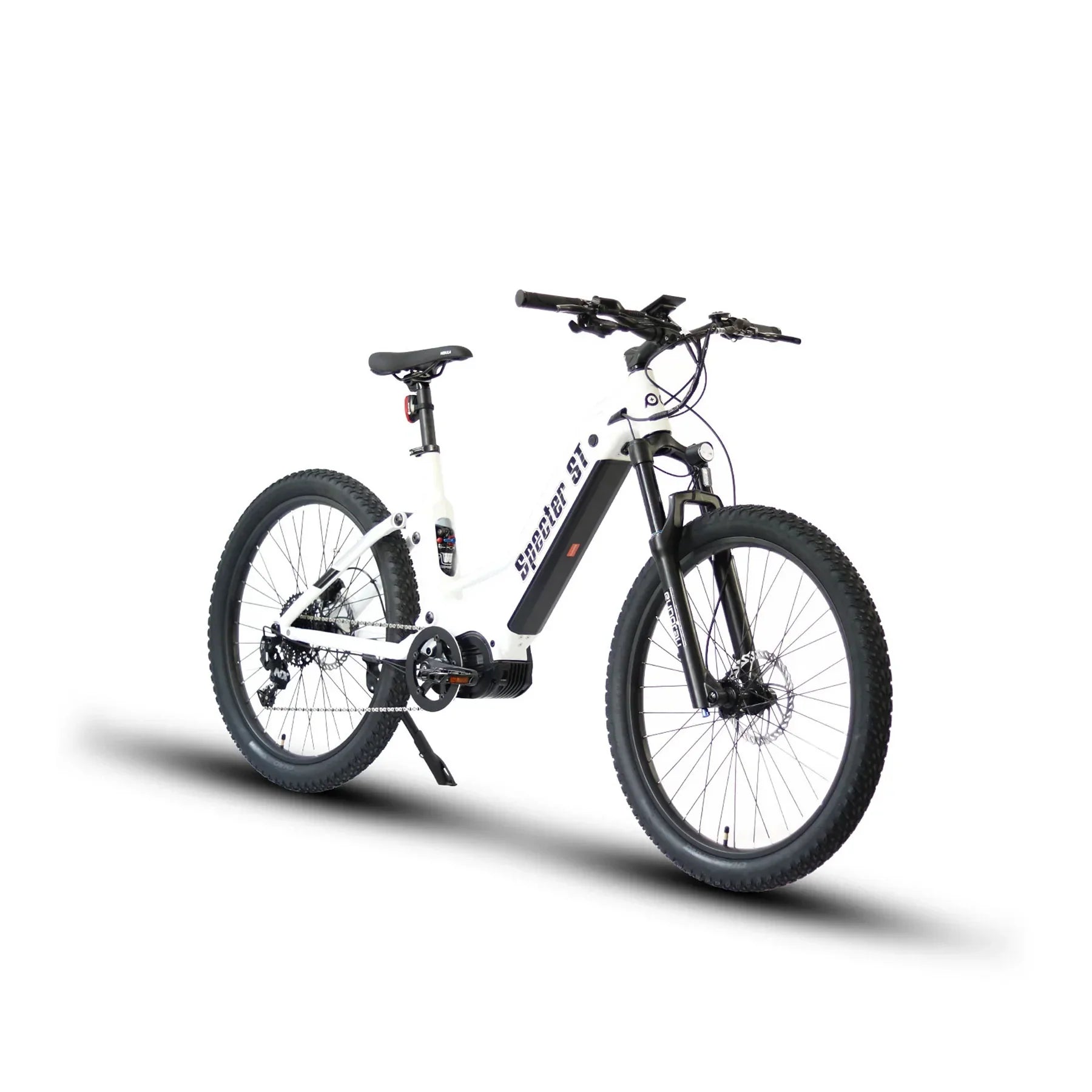

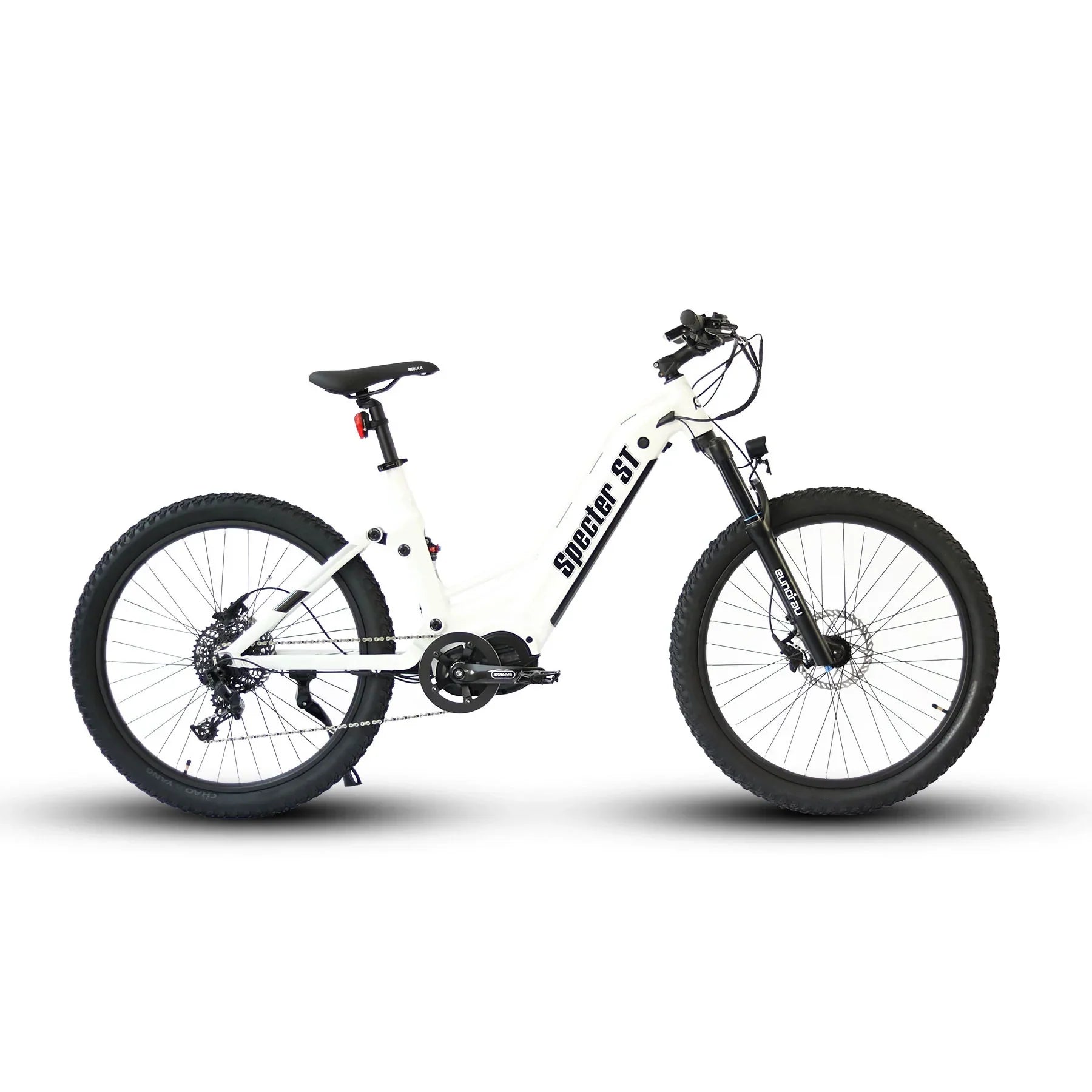

A step-through e-mountain bike with a 1000W mid-drive, 140 mm front travel and a torque sensor for a natural, powerful ride.
SRAM NX 11-speed, 180 mm hydraulic brakes and an optional second battery for up to about 80 miles.
Top speed: Up to 28 mph.
Highlights
- 48V 1000W Mid-Drive Motor with up to 160 Nm of torque
- Dual Battery System for extended range up to approximately 80 miles
- Full Suspension Design with 140 mm front travel and rear shock
- Torque Sensor Pedal Assist for smooth, natural riding feel
- Adjustable Handlebar Stem for personalized comfort
- Integrated LED Headlight and Taillight for visibility and safety
- Color TFT Display showing speed, battery level, assist mode, and more
- Hydraulic Disc Brakes (180 mm) for strong and reliable stopping power
Specifications
| Motor | 48V 1000W mid-drive motor with torque sensor |
|---|---|
| Battery | 48V 17.5Ah main battery (optional secondary battery available) |
| Range | Up to ~80 miles (with dual battery setup) |
| Pedal Assist Levels | 5 levels |
| Frame | Aluminum alloy 6061 full-suspension frame |
| Front Suspension Travel | 140 mm |
| Rear Suspension | Rear shock with 165 mm travel |
| Brakes | 180 mm hydraulic disc brakes |
| Drivetrain | SRAM NX 1×11 speed |
| Tires | 27.5″ × 2.8″ |
| Display | Color TFT display |
| Throttle | Thumb throttle |
| Rider Height Range | Approx. 5′3″ – 6′4″ |
| Payload Capacity | Up to 300 lbs |
| Bike Weight | Approx. 88 lbs |
| Charging Time | Approximately 5-8 hours |
| Top Speed | Up to 28 mph |
| Warranty | 2-year Skyline Volt warranty |
Delivery, returns and warranty
- Free shipping to the lower 48 states. Orders leave our warehouse in 0-1 business days and arrive in 2-5 business days.
- Ships by freight, mostly assembled, with tools and setup guide included.
- 14-day returns with a free return label. Items must be new and unused in original packaging.
- Every order is covered by the 2-year Skyline Volt warranty.
